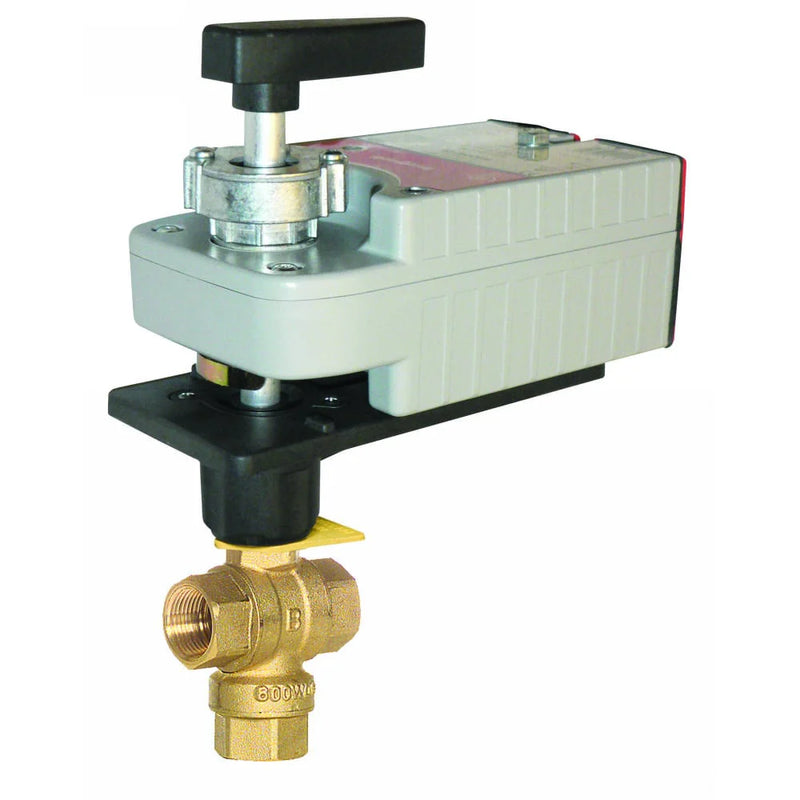

Honeywell VBN3ACPXK301 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN3ACPXK301 is a control ball valve equipped with an electric actuator. This valve provides a 1/2 inch NPT connection and features a three-way valve design. It has a flow coefficient of 0.59 Cv, which allows effective fluid control. Constructed with plated brass trim, the VBN3ACPXK301 is reliable for various applications.

• 1/2 inch NPT connection
• 3-way valve design
• Operates on 24 VAC

Product Highlights

This valve features modulating floating two-position control and includes a fail-safe A-AB open configuration, ensuring safety and efficiency. The unit comes with a one-meter cable and two auxiliary switches for enhanced functionality.

Product Information

Standard Information

• Brand: Honeywell
• Model: VBN3ACPXK301

Technical Specifications

• Connection Size: 1/2 inch NPT
• Valve Type: 3-Way
• Flow Coefficient (Cv): 0.59
• Trim Material: Plated Brass
• Control Type: Modulating Floating Two-Position
• Fail-Safe Mode: A-AB Open
• Input Voltage: 24 VAC
• Auxiliary Switches: 2
