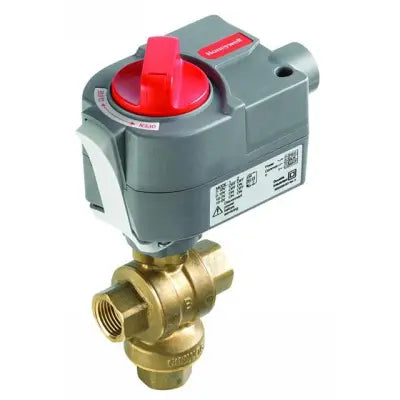

Honeywell VBN3ACPL2000 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN3ACPL2000 is a reliable 3-way control ball valve equipped with an efficient electric actuator. It offers a Cv rating of 0.59, ensuring effective flow control. The valve features a brass trim and is designed with a 1/2-inch NPT connection, making it suitable for various applications. The actuator is optimized for floating and two-position control, including a fail-in-place mechanism for added safety.

• 3-way body design for versatile flow control
• Removable manual override handle for manual operation
• Standard 1/2-inch NPT connection for easy installation

Product Highlights

This control valve is ideal for on/off control applications in HVAC systems, providing reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VBN3ACPL2000

Technical Specifications

• Connection: NPT
• Cv: 0.59 CV
• Trim Material: Brass
• Pattern: 3-way
• Size: 1/2 inch
• Control Signal: Floating, Two Position
• Packaging: Box
• Product Status: Active
