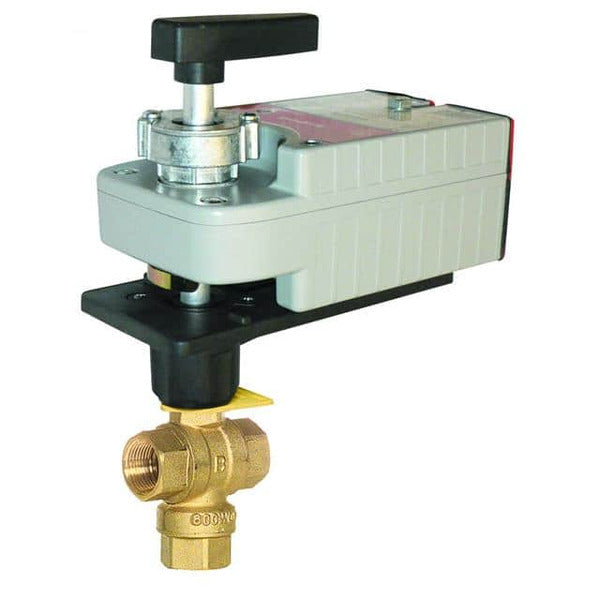

Honeywell VBN3ABPX5000 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN3ABPX5000 is a control ball valve equipped with an electric actuator. This three-way valve features a half inch NPT connection and a coefficient of flow of 0.33 CV. It includes a plated brass trim and operates with a DCA profile. This actuator provides modulating floating control along with a fail-in-place design, functioning at twenty-four volts alternating current. It is ideal for managing hot or chilled water and glycol solutions up to fifty percent.

• Features a half inch NPT connection
• Includes electric actuator for modulating floating control
• Designed for hot or chilled water and glycol solutions

Product Highlights

This valve is suitable for HVAC applications where precise control of flow is necessary.

Product Information

Standard Information

• Manufacturer: Honeywell
• Model Number: VBN3ABPX5000

Technical Specifications

• Connection: 1/2 in. NPT
• Type: 3-Way Ball Valve
• Cv: 0.33
• Trim Material: Plated Brass
• Control: Modulating Floating (Fail In Place)
• Voltage: 24 Vac
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Operating Temperature: -22°F to 250°F (-30°C to 121°C)
