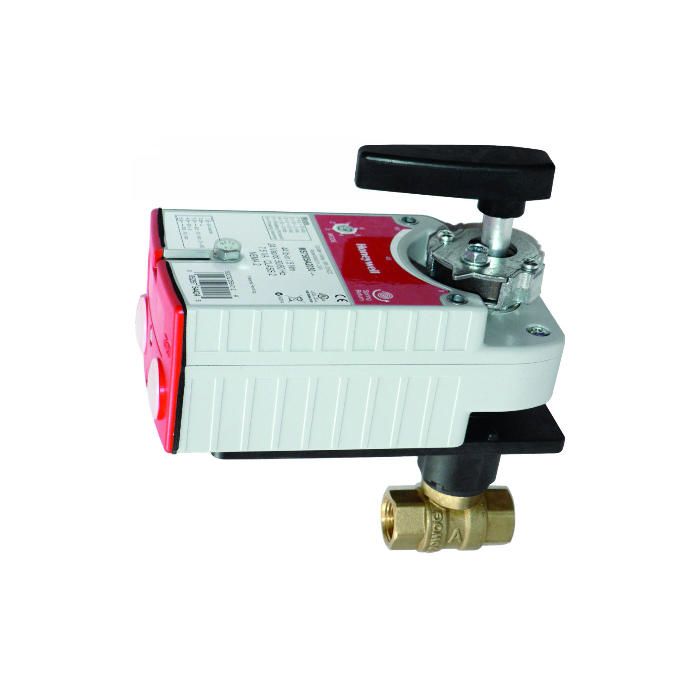

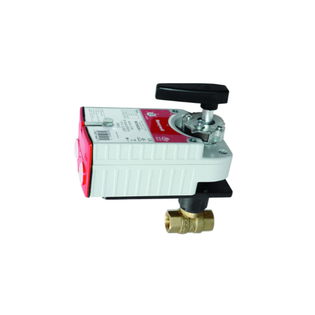

Honeywell VBN2HUSX7200 Series Control Ball Valve

Product Description

The Honeywell VBN2HUSX7200 Series Control Ball Valve is designed for controlling hot and chilled water in HVAC systems. This valve handles applications with up to 50% glycol solutions effectively.

• Available in sizes from one half to three inches with NPT connections.
• Features equal percentage flow characteristics.
• Trim material is made of durable stainless steel.

Product Highlights

This valve is efficient in controlling fluid flow and is available with or without actuators, making it versatile for different HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2HUSX7200

Technical Specifications

• Pattern: 2-way
• Connection: NPT
• Trim Material: Stainless Steel
• Control Signal: Two Position
• Operating Temperature: with MS actuators: -40 to 150 F (-40 to 65 C)
• Maximum Safe Operating Rating: 360 psi
• Power Consumption: 5 VA
• Housing: NEMA 2, IP54
• Service: Hot and chilled water w/glycol solutions up to 50%
• Flow Characteristic: Equal Percentage
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22 to 250 F (-30 to 121 C)
• Pressure Rating: 360 psig (2482 kPa) at 250 F (121 C)
• Warranty: 5 years
