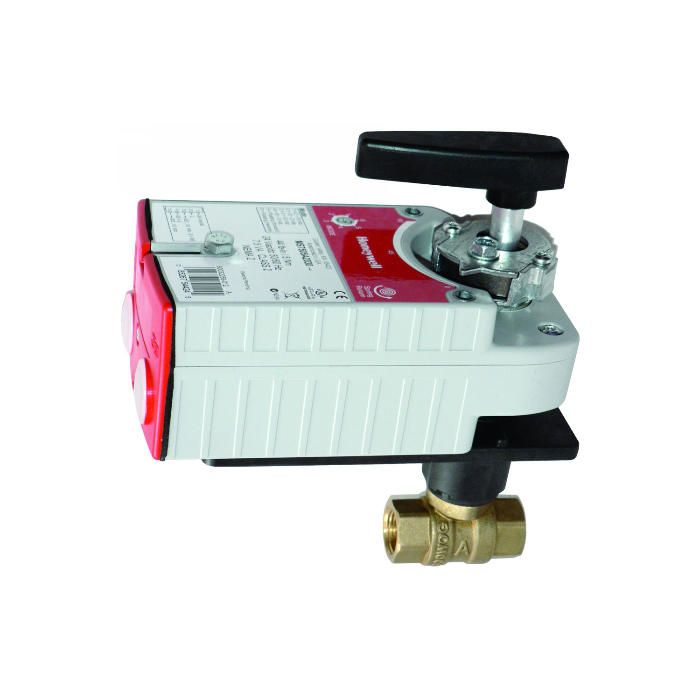

Honeywell VBN2HUPX6200 Ball Valve Assembly, 2-Way, 3 in NPT

Product Description

The Honeywell VBN2HUPX6200 is a 2-way ball valve assembly with a three-inch NPT connection. This valve has a characterized control feature that allows it to achieve a Cv rating of 145. The construction is made of nickel-chrome plated brass for durability. The assembly includes a direct-coupled actuator with a torque of 44 in-lb, suitable for both modulating and floating control. The valve requires a power supply of 24 VAC and is designed to fail-safe in a closed position with a two-position SPDT.

• Compatible with hot and chilled water with glycol solutions up to fifty percent.
• Utilizes a self-centering clamping shaft adapter for efficient operation.
• Housing conforms to NEMA 2 and IP54 standards for environmental protection.

Product Highlights

This ball valve assembly is ideal for HVAC applications and fluid control systems.

Product Information

Standard Information

• Service: Hot and chilled water with glycol solutions up to fifty percent.
• Flow Characteristic: Equal percentage.

Technical Specifications

• Operating Temperature: -40 F to 149 F (-40 C to 65 C).
• Maximum Safe Operating Rating: 361 psi.
• Power Consumption: 5 VA.
• Operating Conditions: -40 F to 150 F (-40 C to 65 C).
• Shaft Adapter Type: Self-centering clamping.
• Housing: NEMA 2, IP54.
