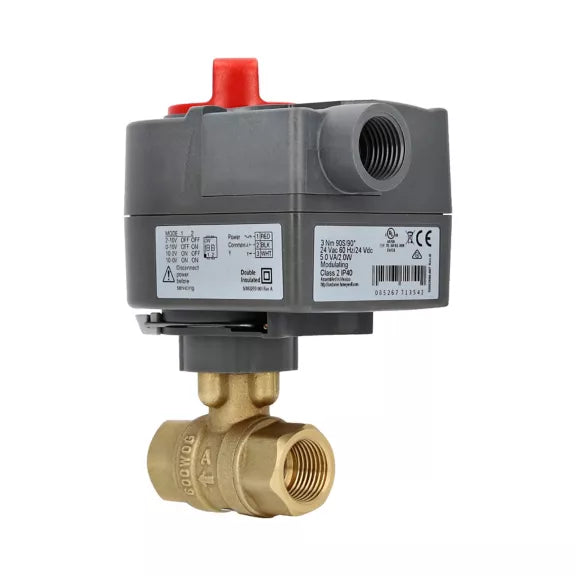

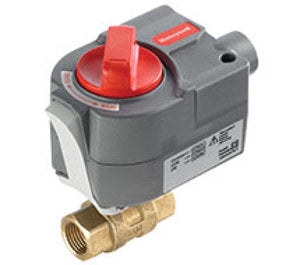

Honeywell VBN2GRSX5000 VBN Threaded Control Ball Valve Actuator

Product Description

The Honeywell VBN2GRSX5000 is a reliable actuator designed for control of VBN2 two-way and VBN3 three-way ball valves. This actuator is efficient for managing hot and chilled water flows, including mixtures with glycol solutions, making it essential for HVAC systems.

• Compatible with ball valves ranging from half an inch to 1.25 inches.
• Offers click-on installation with no tools needed.
• Supports both floating and modulating control options.

Product Highlights

This actuator is simple to install and offers versatile operation modes.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2GRSX5000

Technical Specifications

• Torque: 27 lb-in (3 Nm)
• Fail-Safe: Non-Spring Return
• Input Voltage: 24 VAC +20%, -15%, 24 VDC
• Control Signal: Analog
• Actuator Type: Valve
• Rotational Stroke: 90 degrees ± 3 degrees
• Noise Rating: 35 dB(A) max at 1 m
• Weight: 1.4 lb (0.64 Kg)
