Honeywell VBN2GRPX0000 2.5in 2W BallVlv 72cv Vlv Only

Product Description

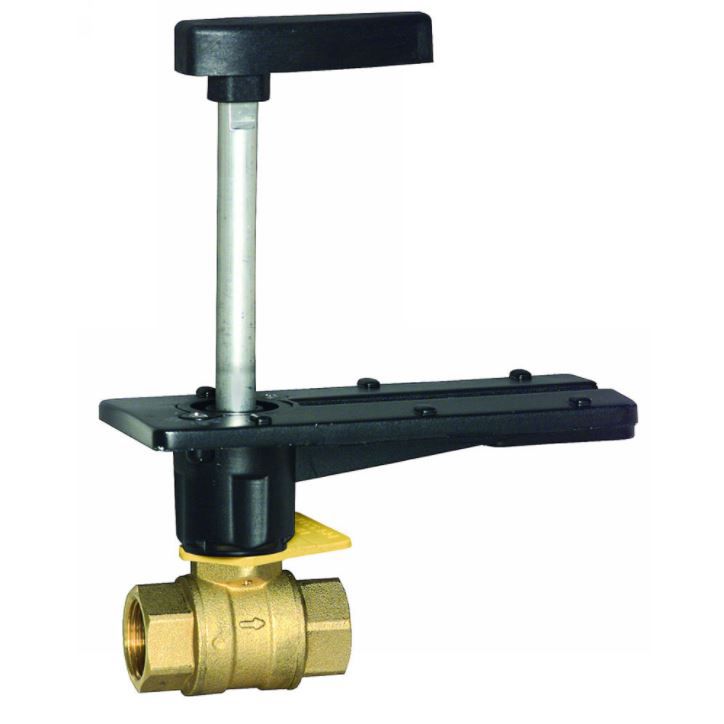

The HONEYWELL VBN2GRPX0000 is a 2.5in 2W BallVlv with a 72cv Vlv Only. This control ball valve is designed for HVAC systems, controlling hot and chilled water with glycol solutions up to 50%. It features a direct coupled actuator base and NPT connection. The valve is suitable for two-position or modulating functions.

• Equal percentage flow characteristic
• Field configurable for normally open or normally closed fail-safe position
• Actuator can be mounted on the valve in any of four orientations

Product Highlights

This Honeywell ball valve offers precise control and flexible installation for HVAC applications, ensuring efficient operation and easy maintenance.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VBN2GRPX0000

Technical Specifications

• CV: 72
• Trim: Nickel Chrome Plated Brass
• Linkage: Direct Coupled Actuator Base
• Assembly: Valve Only
• Connection: NPT
• Valve Size: 2.5 in
• Valve Piping: 2-Way
• Close-Off Rating: 100 PSI
• Material: Brass
• Used With: DCA Actuator
• Body Pattern: 2-Way
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 72
• Trim Material: Brass
• Pattern: 2-way
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: Two-way 1/2" and 3/4": 130 psid (897 kPa) Two-way 1" to 3": 100 psid (690 kPa) Three-way 1/2" to 1": 50 psid (345 kPa) Three-way 1-1/4" to 2-1/2": 40 psid (276 kPa)
• Materials Of Construction: Two-way: Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way) ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon® bass seals Two-way: 316 stainless steel ball and stem
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22° to 250°F (-30° to 121°C)
• Compatible Actuators: Any Honeywell or Kele 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3"
• Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
• Operating Temperature: with MN actuators: -5° to 140°F (-20° to 60°C) with MS actuators: -40° to 150°F (-40° to 65°C) with MVN actuators: -4° to 131°F (-20° to 55°C)
• Warranty: 5 years
• Item Number: VBN2GRPX0000
• Brand: Honeywell
• Control Valves Type: Ball Valve
• Manufacturer: Honeywell
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
• Part #: VBN2GRPX0000
• Category: Valves
• Subcategory: Ball Valve
• Part Number: VBN2GRPX0000
• Model: P1911973
