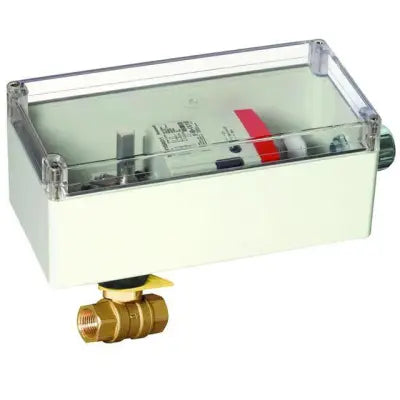

Honeywell VBN2F2SXB102 2-Way 2-Inch NPT Control Ball Valve with Actuator

Product Description

The Honeywell VBN2F2SXB102 is a two-way control ball valve designed for efficient flow control. This model features a two-inch NPT connection and is equipped with a robust electric actuator. The valve has a Cv rating of 266, making it suitable for various applications requiring modulating floating control. Its normally open fail-safe position ensures safety and reliability during operation. It operates on a twenty-four VAC supply and includes one auxiliary switch for added functionality. The valve assembly is enclosed in a NEMA 3R rated housing for protection against environmental factors.

• 2-inch NPT connection
• Stainless steel trim for durability
• Operates on a 24 VAC supply voltage

Product Highlights

This control ball valve is ideal for HVAC systems and other applications needing precise flow management. The NEMA 3R enclosure protects internal components from dust and moisture.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: VBN2F2SXB102

Technical Specifications

• Connection: NPT
• Size: 2 inches
• Pattern: 2-way
• Cv: 266 CV
• Trim Material: Stainless Steel
• Supply Voltage (Nominal): 24 VAC
• Control Signal: Analog
• Enclosure: NEMA 3R
