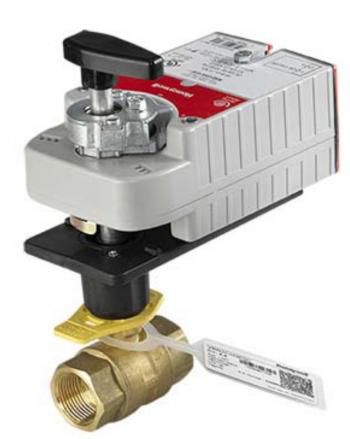

Honeywell VBN2ERSX6100 2-Way Control Ball Valve

Product Description

The Honeywell VBN2ERSX6100 is a 2-way control ball valve suitable for HVAC systems. It manages the flow of hot or chilled water and can handle solutions with a glycol concentration of up to fifty percent. This valve has a connection size of one and one-half inches NPT and boasts a Cv rating of seventy-four. It features stainless steel trim and is compatible with either modulating or two-position control. The valve is suitable for use with Honeywell or Kele actuators.

• Connection: One and one-half inches NPT
• Flow rating: Seventy-four Cv
• Material: Stainless steel trim

Product Highlights

This valve is designed for effective flow regulation in demanding environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2ERSX6100

Technical Specifications

• Model: P1911962
• Connection: NPT
• Cv Rating: 74 Cv
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: One and one-half inches
• Control Signal: Analog, Floating
• Body Pattern: Two-way and three-way (mixing or diverting)
• Flow Characteristic: Equal percentage for models with parabolic insert
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: Two-way one-half and three-quarter inches: 130 psid (897 kPa)
• Materials of Construction: Forged brass body, nickel-plated brass ball and stem, EPDM o-ring seals
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: Negative twenty-two to two hundred fifty degrees Fahrenheit
• Compatible Actuators: Honeywell or Kele actuators
• Pressure Rating: 360 psig
• Operating Temperature: From negative five to one hundred forty degrees Fahrenheit
• Warranty: Five years
