Honeywell VBN2DSPX0000 1.25in 2W BallVlv 102cv Vlv Only

Product Description

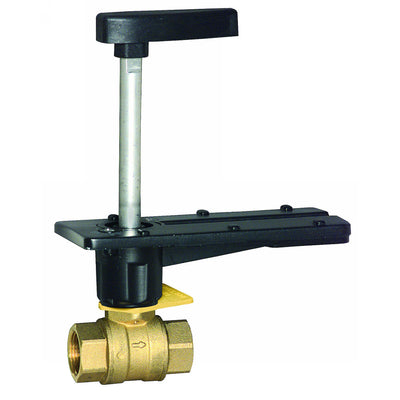

The HONEYWELL VBN2DSPX0000 is a 1.25in 2W BallVlv with a 102cv Vlv Only. The VBN2 and VBN3 Series are Honeywell's characterized flow, low-torque, two-, and three-way ball valves designed to provide Cv ratings that closely match industry-standard globe valves, and they have equal percentage flow characteristics.

• Parabolic flow insert constructed into the ball
• Cv ratings similar to globe valves
• Three-way body pattern similar to globe valves

Product Highlights

This valve features a forged brass body, nickel-plated brass ball and stem, and EPDM o-ring stem seals.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: VBN2DSPX0000

Technical Specifications

• CV: 102
• Trim: Nickel Chrome Plated Brass
• Linkage: Direct Coupled Actuator Base
• Assembly: Valve Only
• Connection: NPT
• Valve Size: 1.25 in
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Close-Off Rating: 100 PSI
• Trim Material: Brass
• Pattern: 2-way
• Cv Range: 0.38 to 266
• Body Pattern: Two-way and three-way (mixing or diverting)
• Flow Characteristic: Two-way: Equal percentage for models with parabolic insert, linear for full port models Three-way: Equal percentage ports A-to-AB and linear ports B-to-AB
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: Two-way 1/2" and 3/4": 130 psid (897 kPa) Two-way 1" to 3": 100 psid (690 kPa) Three-way 1/2" to 1": 50 psid (345 kPa) Three-way 1-1/4" to 2-1/2": 40 psid (276 kPa)
• Materials Of Construction: Two-way: Forged brass body (ASTM B283), nickel-plated brass (two-way or three-way) ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon bass seals Two-way: 316 stainless steel ball and stem
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22 to 250 F (-30 to 121 C)
• Compatible Actuators: Any Honeywell 44 in-lb non-spring return or spring return actuator will operate all VBN2, VBN3 assemblies up to 3"
• Pressure Rating: 360 psig (2482 kPa) @ 250 F (121 C)
• Operating Temperature: with MN actuators: -5 to 140 F (-20 to 60 C) with MS actuators: -40 to 150 F (-40 to 65 C) with MVN actuators: -4 to 131 F (-20 to 55 C)
• Item Number: VBN2DSPX0000
• Brand: Honeywell
• Control Valves Type: Ball Valve
