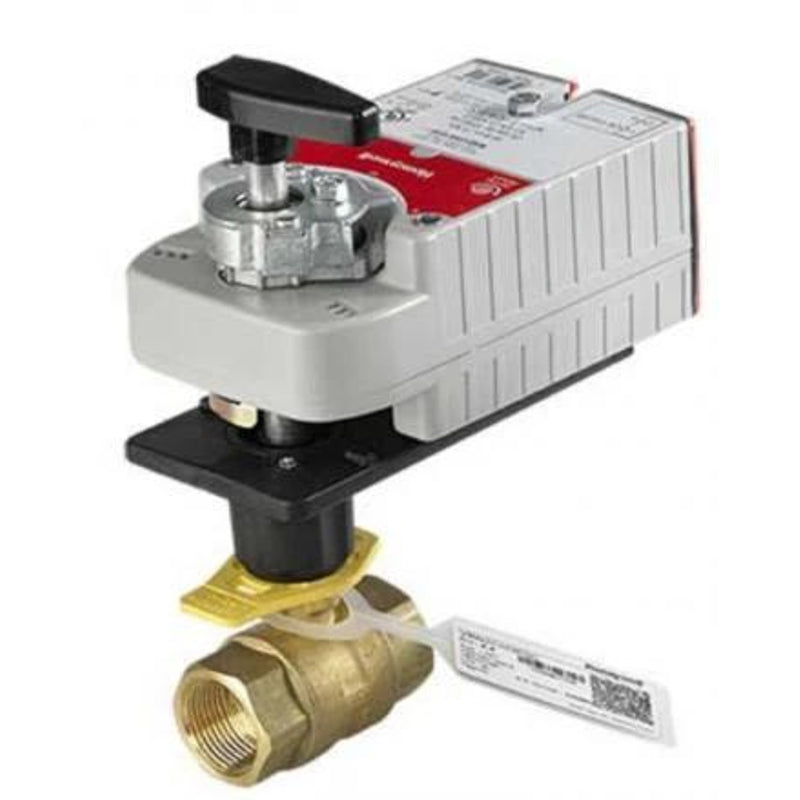

Honeywell VBN2DMPX9202 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2DMPX9202 is a two-way control ball valve designed for HVAC systems. It features a one and one-fourth inch NPT connection and has a Cv rating of thirty-seven. This valve supports on/off control and includes a fail-closed mechanism for safety. It operates with an electric actuator, making it suitable for controlling both hot and chilled water, even with up to fifty percent glycol solutions.

• 1-1/4 inch NPT connection
• Two-way valve pattern
• Operates on 100-250 VAC

Product Highlights

This valve is built for reliability in HVAC systems and comes with a durable brass trim. It also includes an auxiliary switch for added control options.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2DMPX9202

Technical Specifications

• Connection: NPT
• Size: 1-1/4 inch
• Cv: 37 CV
• Trim Material: Brass
• Pattern: Two-way
• Control Signal: Two Position
• Input Voltage: 100 - 250 VAC
