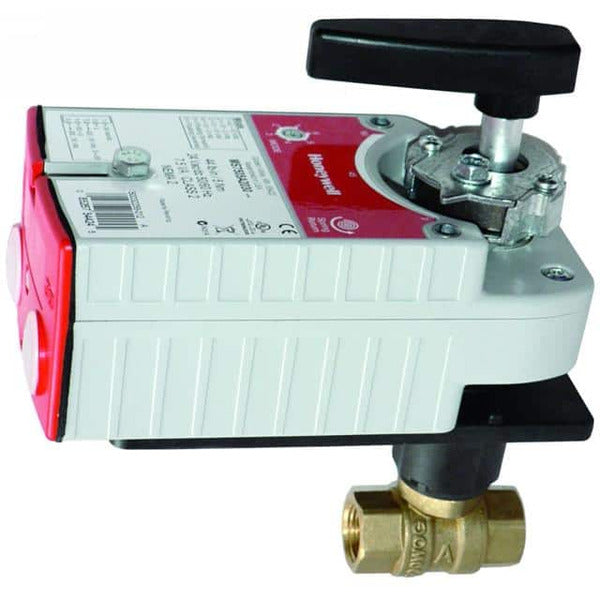

Honeywell VBN2DLPXH201 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2DLPXH201 is a control ball valve with an electric actuator suited for HVAC applications. It effectively manages hot and chilled water, accommodating solutions with up to 50% glycol. The valve features a one and one-quarter inch NPT connection and a two-way valve design.

• Features a one and one-quarter inch NPT connection and two-way valve pattern.
• Equipped with plated brass trim and communicating Sylk for fail-closed operation.
• Requires a 24 VAC power supply and includes two auxiliary switches.

Product Highlights

This control ball valve is designed for reliability and efficiency in HVAC systems, providing seamless control of hot and chilled water.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2DLPXH201

Technical Specifications

• Connection: NPT
• Cv: 25 CV
• Supply Voltage: 24 VAC
• Trim Material: Brass
• Pattern: 2-way
• Size: 1-1/4 in
• Control Signal: Communicating
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22 to 250 F (-30 to 121 C)
• Pressure Rating: 360 psig (2482 kPa) @ 250 F (121 C)
