HONEYWELL VBN2DKSXA100 Control Ball Valve and Actuator Assembly

Product Description

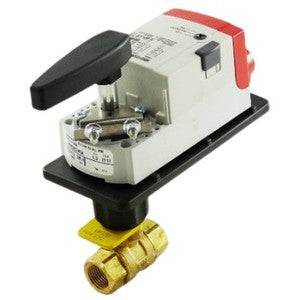

The Honeywell VBN2DKSXA100 is a two-way control ball valve and actuator assembly tailored for HVAC systems. This product effectively manages the flow of hot and chilled water, accommodating solutions with up to fifty percent glycol. It includes a characterized flow control insert that enables equal percentage flow. The valve is compatible with both two-position and modulating functions, and it can be configured with either spring return or non-spring return actuators. It features installation in a globe valve 'T' pattern.

• Controls hot and chilled water with up to 50% glycol solutions.
• Features a 2-way body pattern with female NPT connections.
• Offers a maximum safe operating rating of 360 psi.

Product Highlights

The valve's design supports efficient flow management in HVAC applications, ensuring precise control over heating and cooling.

Product Information

Standard Information

• Manufacturer Part Number: VBN2DKSXA100
• Valve Type: Control Ball Valve

Technical Specifications

• Body Pattern: 2-way
• Connection Type: Female NPT
• Controlled Fluid: Chilled or hot water with up to 50% glycol
• Fluid Temperature Range: -22°F to +250°F (-30°C to +121°C)
• Maximum Safe Operating Rating: 360 psi (2482 kPa)
• Flow Characteristics: 2-way: Equal Percentage with flow control insert
• Materials: Body - Brass; Ball and Stem - Nickel-chrome plated brass or 316 stainless steel; Seat - Teflon seals with EPDM O-rings; Flow Control Insert - Noryl
• Size: 1-1/4 inches
• Cv: 14.9 CV
• Trim Material: Stainless Steel
• Control Signal: Two Position
• Body Style: 2-way ball valve, straight-through flow, full or reduced port using patented flow control insert
