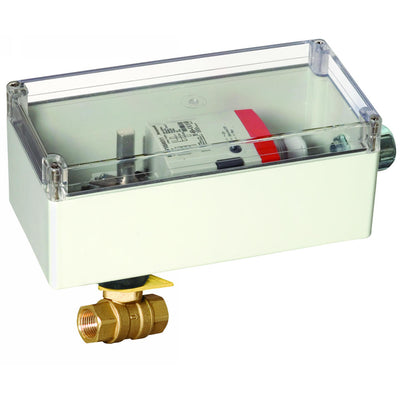

Honeywell VBN2DKPXB202 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2DKPXB202 is a 2-way ball valve equipped with an electric actuator. It has a one and one-fourth inch NPT connection and boasts a Cv rating of fourteen point nine. Constructed from brass, this valve supports modulating floating control with a fail-safe closed feature and operates at twenty-four volts alternating current. The product includes one auxiliary switch and is housed in a NEMA three R enclosure.

• Features a NEMA 3R enclosure.
• Operates on a 24 VAC power supply.
• Design incorporates characterized flow with equal percentage flow characteristics.

Product Highlights

This valve allows for precise control in various applications, ensuring reliable performance in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2DKPXB202

Technical Specifications

• Connection: NPT
• Size: 1-1/4 inches
• Pattern: 2-way
• Cv: 14.9
• Trim Material: Brass
• Control Signal: Analog, Floating
• Control Valves Type: Ball Valve
