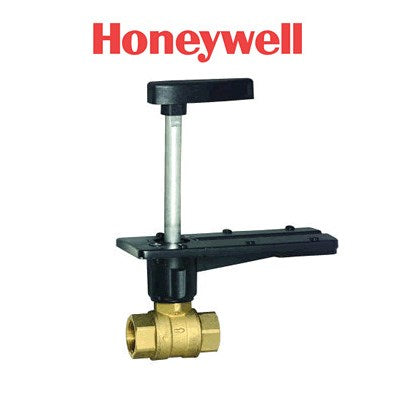

HONEYWELL VBN2CPSX5002 Control Ball Valve

Product Description

The HONEYWELL VBN2CPSX5002 is a control ball valve crafted for HVAC applications. This valve regulates the flow of both hot and chilled water, including glycol mixtures up to fifty percent. It can be acquired individually or paired with either spring-return or non-spring-return actuators. The valve is engineered with an equal percentage flow characteristic that promotes effective linear heat transfer for precise control.

• Sizes available from one half to three inches with NPT connections.
• Equal percentage flow characteristic for optimal performance.
• Constructed with nickel-chrome plated brass or 316 stainless steel materials.

Product Highlights

Offering improved longevity, the characterized insert integrated into the ball enhances service life and pressure tolerance.

Product Information

Standard Information

• Body Pressure Rating: Maximum of 360 psi (2482 kPa) at 250°F (121°C)
• Medium Temperature Range: Negative twenty-two to positive two hundred fifty degrees Fahrenheit

Technical Specifications

• Flow Characteristics: Equal percentage with flow control insert
• Compatible Actuators: Minimum torque required is thirty-five lb-in. (4 Nm) for sizes up to three inches, and twenty-seven lb-in. (3 Nm) for sizes up to one and one-quarter inches
• Controlled Fluid: Chilled or hot water with up to fifty percent glycol
• Body Material: Brass
• Ball and Stem Material: Nickel-chrome plated brass or 316 stainless steel
• Body Style: Two-way ball valve, straight-through flow, with options for full or reduced port using a patented flow control insert
