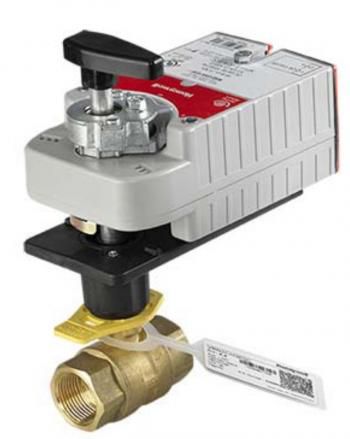

HONEYWELL VBN2CMSX9102 Control Ball Valve with Electric Actuator

Product Description

The HONEYWELL VBN2CMSX9102 is designed for precise on/off control. This 1-inch NPT, 2-way ball valve features an electric actuator, perfect for various HVAC applications. The stainless steel trim and characterized flow of 26 Cv ensure reliable performance. Suitable for environments requiring a fail-open configuration, this valve includes an auxiliary switch and operates on a voltage range of one hundred to two hundred fifty VAC housed in a NEMA 3R enclosure.

• 1-inch NPT connection
• 2-way valve pattern
• Operates on 100-250 VAC

Product Highlights

This control ball valve is ideal for HVAC systems, allowing for effective flow management and energy efficiency.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2CMSX9102

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: NPT
• Cv: 26 CV
• Supply Voltage (Nominal): 120 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1 in
• Control Signal: Two Position
