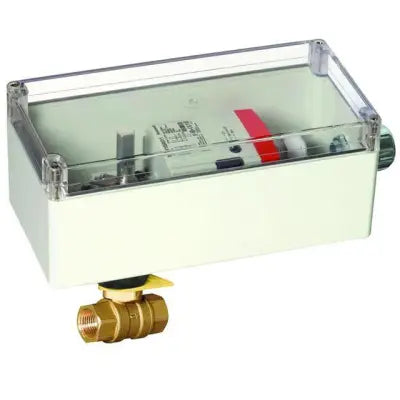

Honeywell VBN2CLPX9102 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2CLPX9102 is a one-inch NPT, two-way control ball valve designed to work with an electric actuator. It is suitable for on/off control with a fail-open functionality. This valve operates on a voltage range of one hundred to two hundred fifty VAC and includes one auxiliary switch.

• One-inch NPT connection.
• Two-way valve with a Cv rating of fifteen point three.
• Designed for operational safety with a fail-open mechanism.

Product Highlights

The VBN2CLPX9102 is engineered for reliable use in HVAC applications, making it an essential component for effective temperature control and regulation.

Product Information

Standard Information

• Brand: Honeywell
• Model Number: VBN2CLPX9102

Technical Specifications

• Connection: NPT
• Size: One inch
• Pattern: Two-way
• Cv: Fifteen point three Cv
• Trim Material: Brass
• Supply Voltage: One hundred twenty VAC
• Control Signal: Two Position
• Enclosure Rating: NEMA 3R
