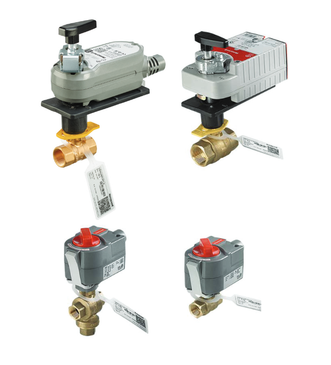

Honeywell VBN2CLPX5002 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2CLPX5002 is a two-way control ball valve used for HVAC systems. It helps in regulating the flow of hot or chilled water, accommodating solutions with up to fifty percent glycol. This valve has a one-inch NPT connection and is made with a brass trim. It also features a characterized flow design, making it compatible with standard globe valves in the industry.

• One-inch NPT connection.
• Features a brass trim.
• Designed for HVAC systems.

Product Highlights

This valve supports modulating and floating functions, allowing for precise control over water flow in HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2CLPX5002

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: NPT
• Cv: 15.3 CV
• Trim Material: Brass
• Pattern: Two-way
• Size: One inch
• Control Signal: Analog, Floating
• Body Pattern: Two-way and three-way
• Flow Characteristic: Two-way: Equal percentage; Three-way: Equal percentage
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: Various based on size
• Materials Of Construction: Forged brass body, nickel-plated brass ball and stem
• Media Compatibility: Hot or chilled water, up to fifty percent glycol
• Media Temperature Range: Negative twenty-two to two hundred fifty degrees Fahrenheit
• Compatible Actuators: Honeywell or Kele actuators
• Pressure Rating: Three hundred sixty psig at two hundred fifty degrees Fahrenheit
• Operating Temperature: Various ranges based on actuator type
• Warranty: Five years
