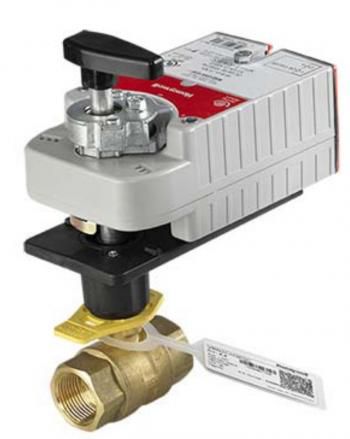

Honeywell VBN2CJSX7100 Control Ball Valve 1 in NPT 9 Cv Stainless Steel Trim

Product Description

The Honeywell VBN2CJSX7100 is a control ball valve designed for effective flow regulation in HVAC systems. This valve operates with hot or chilled water and can handle glycol solutions up to fifty percent concentration. Its one-inch NPT connection and nine Cv flow coefficient allow for precise control, making it suitable for various applications.

• 1 inch NPT connection
• 9 Cv flow coefficient
• Includes stainless steel trim

Product Highlights

This valve is ideal for two-position control and compatible with both spring return and non-spring return actuators.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2CJSX7100

Technical Specifications

• Part Number: VBN2CJSX7100
• Model: P1911946
• Control Valves Type: Ball Valve
• Connection: NPT
• Cv: 9 CV
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1 in
• Control Signal: Two Position
• Body Pattern: Two-way and three-way
• Flow Characteristic: Two-way: Equal percentage for models with parabolic insert, linear for full port models
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: Two-way 1/2inch and 3/4inch: 130 psid (897 kPa), Two-way 1inch to 3inch: 100 psid (690 kPa)
• Materials Of Construction: Forged brass body (ASTM B283), nickel-plated brass ball and stem, EPDM o-ring stem seals and EPDM with reinforced Teflon seals
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Compatible Actuators: Any Honeywell or Kele 44 in-lb actuators
• Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
• Operating Temperature: -5°F to 140°F (-20°C to 60°C)
• Warranty: 5 years
