Honeywell VBN2CJSX6100 Control Ball Valve

Product Description

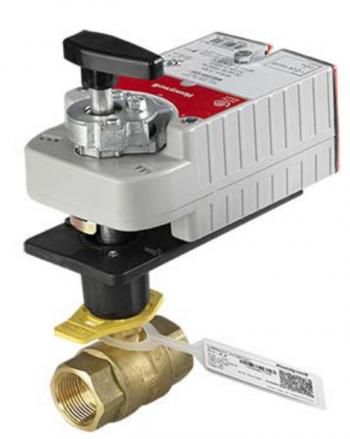

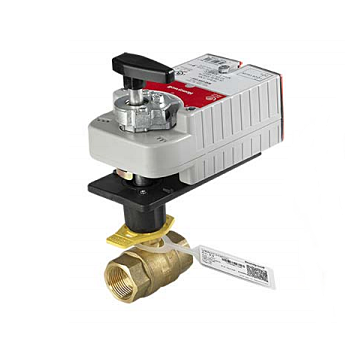

The Honeywell VBN2CJSX6100 is a two-way control ball valve used in HVAC systems. It regulates the flow of hot or chilled water, including up to 50% glycol solutions. This valve has a one-inch NPT connection and a Cv rating of 9.0. It features stainless steel trim and is compatible with both spring return and non-spring return actuators, designed to closely match standard globe valves.

• Female NPT connection
• Equal percentage flow characteristics
• Compatibility with Honeywell or Kele actuators

Product Highlights

This control ball valve is built for efficient flow control in HVAC applications, making it reliable for various heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2CJSX6100

Technical Specifications

• Valve Size: 1 inches (DN25)
• Connection Type: Female NPT
• Valve Outlet: 2-Way
• Cv: 9 Cv
• Trim Material: 316 Stainless Steel
• Maximum Safe Operating Pressure: 360 PSI
• Actuator: 24 VAC Mod. (2)-10 VDC / Floating
• Fail Position: Fail Safe Open
• Body Material: Brass
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Weight: 10.1 lbs
• Leakage Rating: ANSI Class IV (0.01% of Cv)
