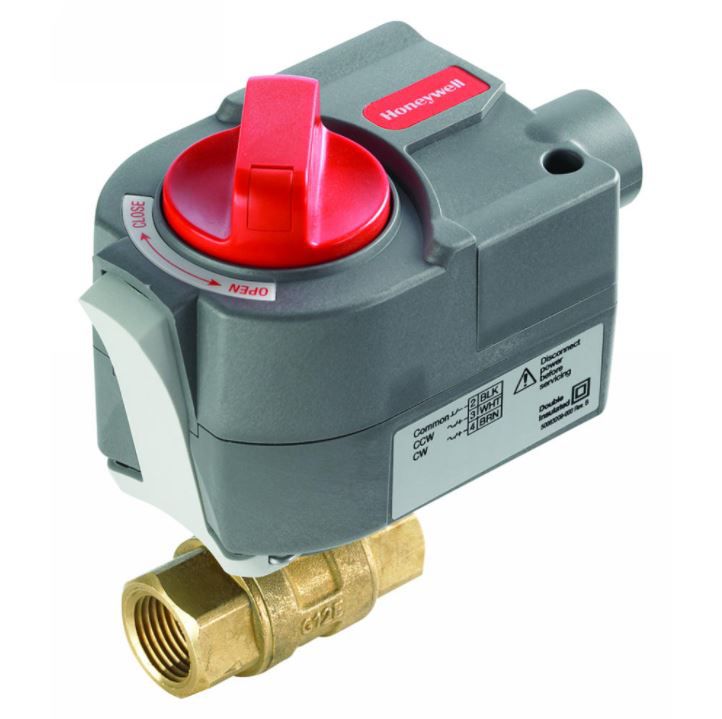

Honeywell VBN2CJSL2001 Ball Valve, 1 in NPT, 9 Cv, Stainless Steel Trim

Product Description

The Honeywell VBN2CJSL2001 is a characterized flow, low-torque, two-way ball valve featuring a one-inch NPT connection and a nine Cv rating. This valve uses stainless steel trim and is designed to offer Cv ratings that align closely with globe valves.

• Connection type: One-inch NPT
• Rated flow coefficient: Nine Cv
• Compatible with Honeywell or Kele actuators

Product Highlights

This ball valve is suitable for various applications where flow control is critical. Its design ensures equal percentage flow characteristics, which enhance system performance and efficiency.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2CJSL2001

Technical Specifications

• Connection: NPT
• Cv: Nine Cv
• Trim Material: Stainless Steel
• Pattern: Two-way
• Size: One inch
• Control Signal: Floating, Two Position
• Body Pattern: Two-way and three-way (mixing or diverting)
• Flow Characteristic: Two-way: Equal percentage for models with parabolic insert, linear for full port models
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: Two-way one-half inch and three-quarter inch: 130 psid; Two-way one inch to three inch: 100 psid
• Materials Of Construction: Forged brass body, nickel-plated brass ball and stem, EPDM o-ring stem seals, and 316 stainless steel options available
• Media Compatibility: Hot or chilled water, up to fifty percent glycol
• Media Temperature Range: -22°F to 250°F
• Compatible Actuators: Honeywell or Kele actuators up to three inches
• Pressure Rating: 360 psig at 250°F
• Operating Temperature: Various ranges depending on actuator type
• Warranty: Five years
• Product Status: Active
