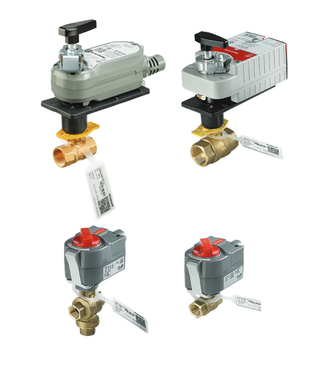

Honeywell VBN2CJPX5002 1 in. 2-Way Ball Valve

Product Description

The Honeywell VBN2CJPX5002 is a 1-inch, 2-way ball valve intended for modulating control. This valve is fitted with a brass trim and delivers characterized flow with a Cv rating of 9.0. It features an electric actuator for operation powered by twenty-four VAC. The design includes a NEMA 3R enclosure and a direct-coupled actuator base.

• NPT connection for secure installation.
• Non-spring return fail-safe mechanism for reliability.
• Compatible with on/off, floating, 0-10 VDC, 2-10 VDC, and 4-20 mA control signals.

Product Highlights

Ideal for HVAC and industrial applications where flow control and reliability are essential.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2CJPX5002

Technical Specifications

• Control Valve Type: Ball Valve
• Connection: NPT
• Cv: 9
• Trim Material: Brass
• Pattern: 2-way
• Valve Size: 1 inch
• Voltage: 24 VAC
• NEMA Rating: NEMA 3R
• Fail-Safe: Non-spring return
• Actuator: MN7505A2001
• Close-Off Rating: 100 PSI
• Control Signal: On/Off, Floating, 0-10 VDC, 2-10 VDC, 4-20 mA
• Runtime: 95 seconds
• Feedback Signal: 2-10 VDC
