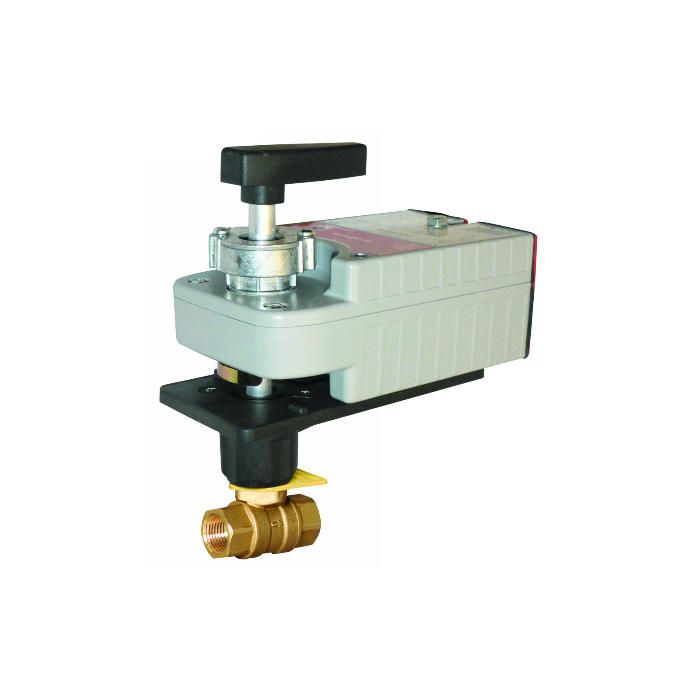

Honeywell VBN2BMSXC000 Ball Valve Assembly, 2 Way, 3/4 in NPT

Product Description

The Honeywell VBN2BMSXC000 is a reliable ball valve assembly designed for two-way applications. This valve features a connection size of three-fourths inches with internal female NPT connections. It operates with a direct coupled actuator that provides a torque rating of forty-four inch-pounds and includes a fail-in-place feature with end switches for safety.

• Sizes range from one-half inch to three inches
• Field configurable for normally open or normally closed fail-safe position
• Removable manual operating handle for valve control during installation

Product Highlights

Engineered for HVAC control, the VBN2BMSXC000 is built to handle hot and chilled water systems with glycol solutions up to fifty percent concentration. I

Product Information

Standard Information

• Brand: Honeywell
• Part Number: VBN2BMSXC000

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot and Chilled Water with Glycol Solutions up to 50%
• Power Consumption: 5 VA
• Shaft Adapter Type: U-Bolt Clamp
• Flow Characteristic: Equal Percentage
• Operating Conditions: -5 F to 140 F (-20 C to 60 C)
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Maximum Safe Operating Rating: 360 psi
