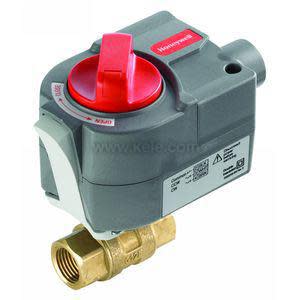

Honeywell VBN2BMSX4002 Control Ball Valve 3/4 In NPT 2-Way 29 Cv Stainless Steel Trim

Product Description

The Honeywell VBN2BMSX4002 is a 2-way control ball valve for HVAC systems. It manages the flow of hot or chilled water, accommodating up to 50% glycol mixtures. The valve features a three-quarter inch NPT connection, a flow coefficient of 29 Cv, and stainless steel trim. Designed for two-position or floating control, it works with electric actuators from Honeywell or Kele.

• 3/4 inch NPT connection
• 29 Cv flow coefficient
• Stainless steel trim

Product Highlights

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2BMSX4002

Technical Specifications

• Connection: NPT
• Size: 3/4 inches
• Cv: 29 Cv
• Trim Material: Stainless Steel
• Pattern: 2-way
• Control Signal: Floating, Two Position
• Body Pattern: Two-way and three-way
• Flow Characteristic: Two-way: Equal percentage; Three-way: Equal percentage A-to-AB
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: 130 psid for 1/2inch and 3/4inch; 100 psid for 1inch to 3inch; 50 psid for 1/2inch to 1inch; 40 psid for 1-1/4inch to 2-1/2inch;
• Materials Of Construction: Forged brass body, nickel-plated brass ball and stem, EPDM o-ring seals, stainless steel options
• Media Compatibility: Hot or chilled water up to 50% glycol
• Media Temperature Range: -22 to 250 F (-30 to 121 C)
• Compatible Actuators: Any Honeywell or Kele actuators
• Pressure Rating: 360 psig at 250 F (121 C)
• Operating Temperature: MN actuators: -5 to 140 F; MS actuators: -40 to 150 F; MVN actuators: -4 to 131 F
• Warranty: 5 years
