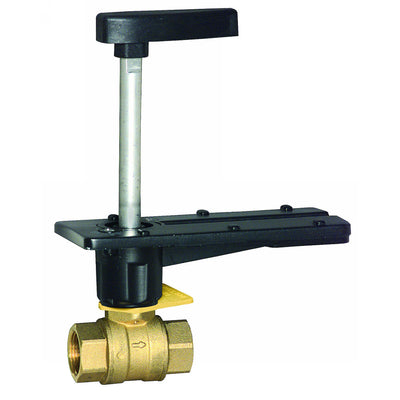

Honeywell VBN2BMSA0000 Control Ball Valve 3/4 In. NPT 2-Way 29 Cv

Product Description

The Honeywell VBN2BMSA0000 is a control ball valve designed for various industrial applications. It features a three-quarter inch NPT connection and offers two-way operation. The valve is built with stainless steel trim for durability and reliability.

• Connection: 3/4 inch NPT
• Cv Rating: 29 Cv
• Compatible with Honeywell or Kele actuators

Product Highlights

This valve is suitable for regulating fluid flow in industrial settings, providing corrosion resistance and effective flow control.

Product Information

Standard Information

• Brand: Honeywell
• Item Number: VBN2BMSA0000

Technical Specifications

• Control Valves Type: Ball Valve
• Cv: 29 Cv
• Pattern: 2-way
• Size: 3/4 inch
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: 130 psid
• Materials Of Construction: Forged brass body and 316 stainless steel ball
• Media Compatibility: Hot or chilled water, up to 50% glycol
