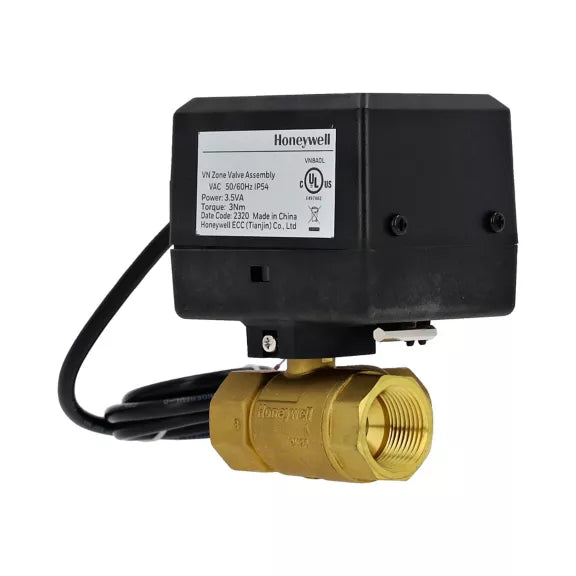

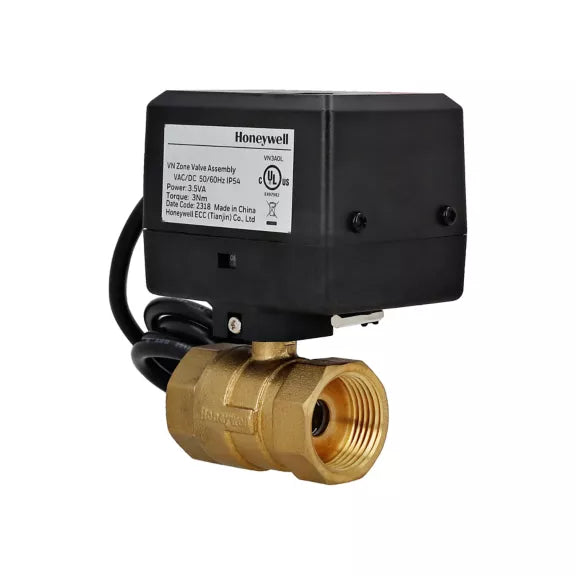

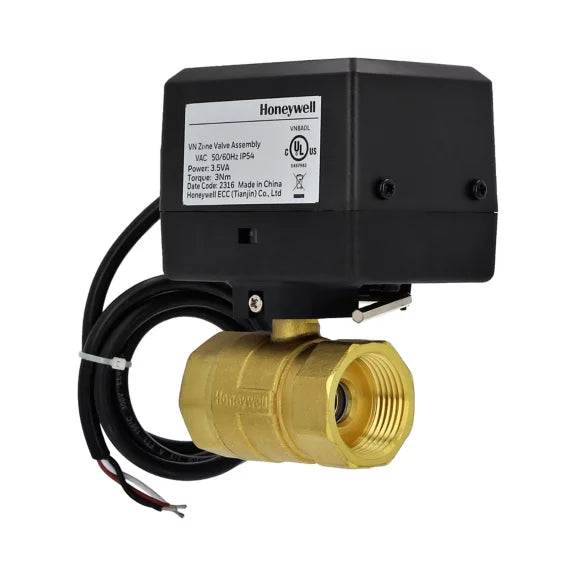

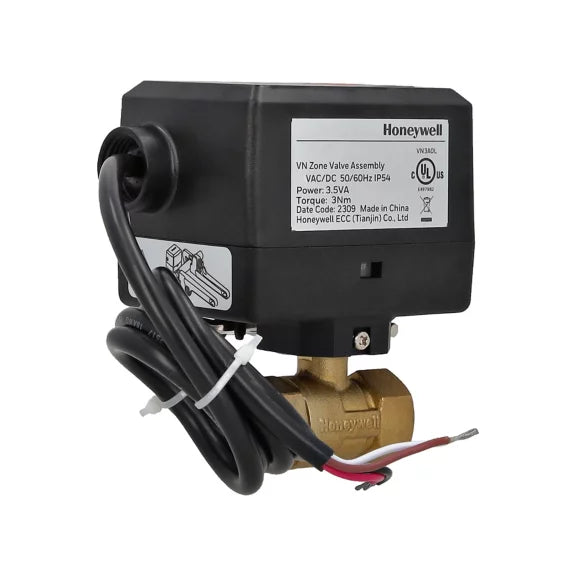

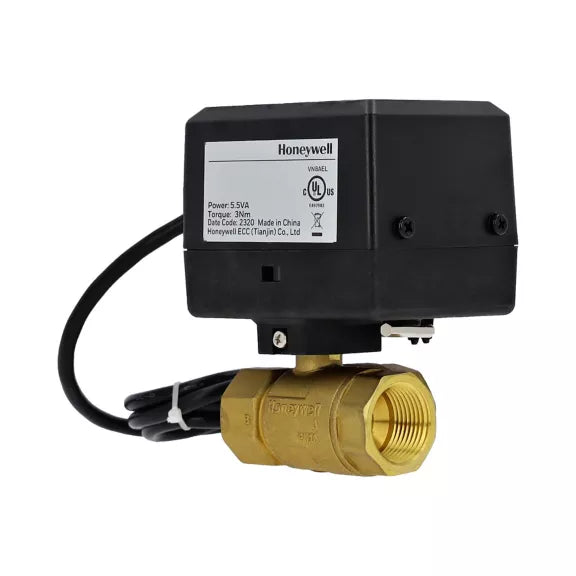

Honeywell VBN2BMPX7100 VN Series Zone Valve

Product Description

The Honeywell VBN2BMPX7100 is a VN Series Zone Valve designed for HVAC systems. This valve features a compact ball valve design that is either 2-way or 3-way. It is factory assembled and tested, equipped with an electronic rotary actuator providing fail-in-place or electronic fail-safe operation. The valve controls the flow of hot or chilled water, and can handle up to 50% glycol concentration.

• Available in 2 or 3-way valve configurations
• Handles cold and hot water or up to 50% glycol solutions
• Features factory fitted tested valve and actuator assemblies

Product Highlights

Reliable control for fan coil units, variable air volume systems, and more.

Product Information

Standard Information

• Valve Type: Ball Valve
• Number of Ways: 2 or 3-way

Technical Specifications

• Suitable Medium: Cold water, hot water, or up to 50% glycol
• Actuator Type: Electronic rotary fail-in-place or electronic fail-safe
• Control Type: 2-Position or Modulating
• Position Feedback: 0-10Vdc (on modulating models)
• Open/Close Time: Less than 40 seconds
• Fail-Safe Time: Less than 15 seconds (E-fail Safe)
• Enclosure Rating: IP54
• Electric Shock Protection: Class II
