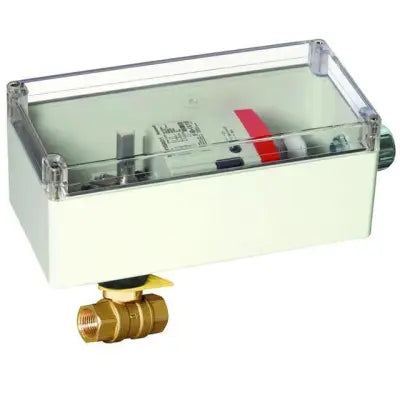

Honeywell VBN2BKPXD002 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2BKPXD002 is a two-way control ball valve equipped with an electric actuator designed for effective fluid control. It has a three-fourth inch NPT connection and a Cv rating of ten point one. This valve is constructed with plated brass trim and operates using a modulating floating fail-in-place DCA profile. The unit functions on twenty-four VAC and comes with two auxiliary switches for added functionality. Encased in a NEMA three R enclosure, it is suitable for various applications, providing reliable performance in demanding environments.

• Features a three-fourth inch NPT connection.
• Includes two auxiliary switches.
• Operates on twenty-four VAC.

Product Highlights

The Honeywell VBN2BKPXD002 is ideal for applications requiring precise flow control and safety features.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• Model Number: VBN2BKPXD002
• Connection: NPT
• Size: three-fourth inches
• Cv: ten point one CV
• Trim Material: Brass
• Pattern: two-way
• Control Signal: Analog, Floating
• Packaging: Box
