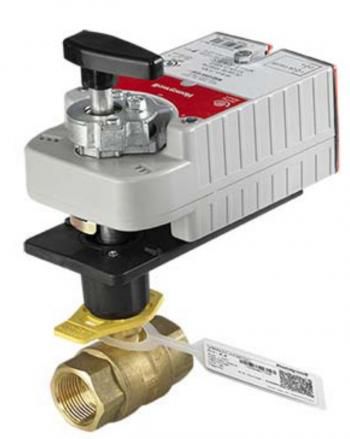

Honeywell VBN2BHSX7102 Ball Valve, 3/4 in NPT, 4.3 Cv

Product Description

The Honeywell VBN2BHSX7102 is a durable two-way ball valve that ensures precise flow control. With a three-quarter inch NPT connection and a Cv rating of 4.3, this valve is reliable for various applications. The stainless steel trim adds to its longevity while providing compatibility with industry-standard actuators.

• Connection: 3/4 inch NPT
• Cv Rating: 4.3
• Trim Material: Stainless Steel

Product Highlights

This ball valve's design allows for efficient flow management in HVAC systems. Its equal percentage flow characteristics make it suitable for precise control in varying conditions.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2BHSX7102

Technical Specifications

• Model: P1911940
• Connection: NPT
• Size: 3/4 inch
• Cv: 4.3
• Trim Material: Stainless Steel
• Pattern: Two-way
• Control Signal: Two Position
• Body Pattern: Two-way and three-way
• Flow Characteristic: Equal percentage for two-way models; linear for full port
• Leakage Rating: ANSI Class IV
• Maximum Closeoff Pressure: 130 psid for 3/4 inch
• Media Compatibility: Hot or chilled water up to 50% glycol
• Media Temperature Range: -22 to 250 F
• Compatible Actuators: Honeywell or Kele 44 in-lb
• Pressure Rating: 360 psig @ 250 F
• Operating Temperature: -5 to 140 F with MN actuators
