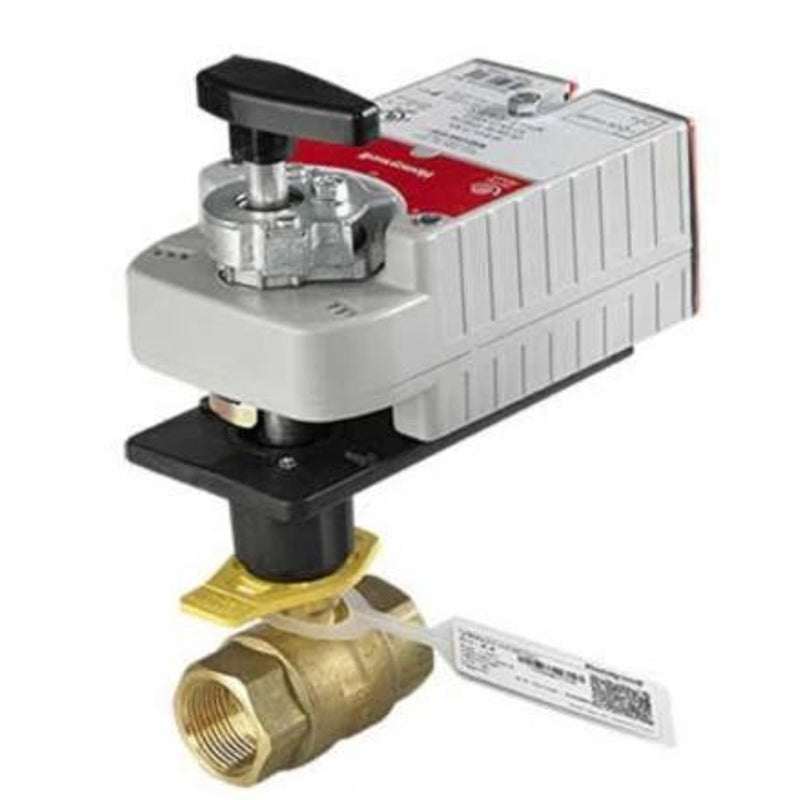

Honeywell VBN2BHPXB102 Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2BHPXB102 is a 2-way ball valve equipped with an electric actuator. This model features a three-quarter inch NPT connection and a flow coefficient (Cv) rating of 4.3. Made with brass trim, it is suitable for modulating floating control applications. The valve operates on twenty-four VAC and includes a fail-safe open functionality for enhanced reliability. An auxiliary switch is provided, and the unit is secured within a NEMA three R enclosure.

• 3/4 inch NPT connection
• Modulating floating control
• Brass trim and fail-safe operation

Product Highlights

This ball valve is designed for efficient control in HVAC systems, suitable for water or steam applications.

Product Information

Standard Information

• Manufacturer Part Number: VBN2BHPXB102
• Brand/Series: Honeywell

Technical Specifications

• Connection: NPT
• Cv: 4.3 CV
• Trim Material: Brass
• Pattern: 2-way
• Size: 3/4 in
• Control Signal: Analog, Floating
