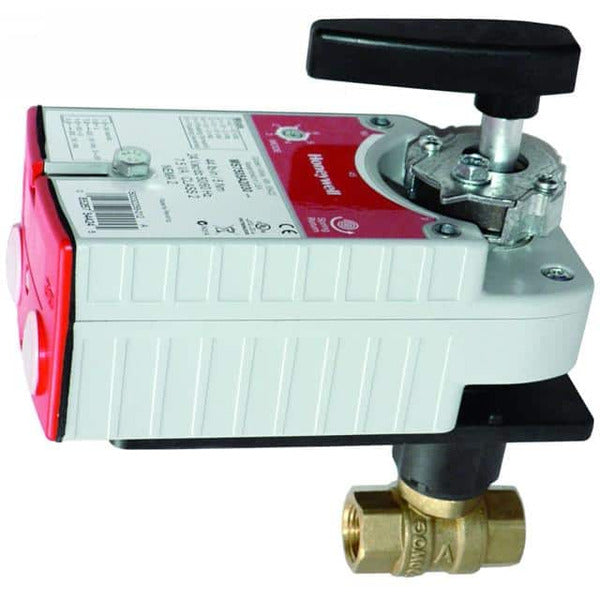

HONEYWELL VBN2BHPX8202 Control Ball Valve with Electric Actuator

Product Description

The HONEYWELL VBN2BHPX8202 is a control ball valve designed with a parabolic flow insert that enhances flow performance. This innovative design provides Cv ratings comparable to those found in globe valves, making it suitable for various applications. The valve also features a three-way body pattern similar to globe valves, which allows for efficient control of fluid flow.

• Parabolic flow insert built into the ball for improved flow rates.
• Flexible installation with a common mounting bracket and various bracket orientations.
• Includes a removable manual override handle for added operational versatility.

Product Highlights

This control ball valve is known for its low torque requirement, which enables the use of smaller actuators, reducing installation costs.

Product Information

Standard Information

• Type: Control Valves
• Body Pattern: Three-way body pattern similar to globe valves

Technical Specifications

• Sizes: One half to three inches with internal (female) NPT connections
• Controlled Fluid: Chilled or hot water with up to fifty percent Glycol
• Body Pressure Rating (maximum): Three hundred sixty psi (two thousand four hundred eighty-two kPa) at two hundred fifty degrees Fahrenheit (one hundred twenty-one degrees Celsius)
