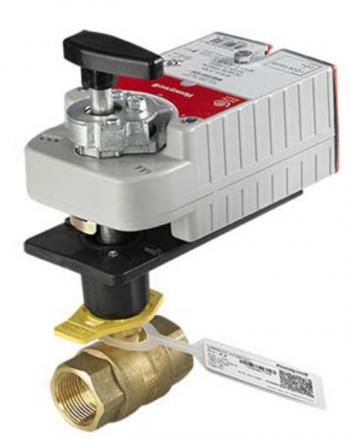

Honeywell VBN2BHPX6102 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2BHPX6102 is a two-way control ball valve designed for HVAC systems. It features a three-quarter inch NPT connection and a 4.3 Cv rating. This valve is made with brass trim and includes an electric actuator for modulating floating control. It operates on twenty-four VAC and has a NEMA 3R enclosure. This valve is suitable for controlling hot and chilled water with up to fifty percent glycol solutions.

• Valve size: three-quarter inch NPT.
• Flow coefficient: 4.3 Cv.
• Designed for two-position or modulating functions.

Product Highlights

The Honeywell VBN2BHPX6102 is built for durability and efficiency within HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VBN2BHPX6102
• Model: P1911940
• Connection: NPT
• Valve Size: 0.75 inches
• Valve Piping: Two-Way
• Cv: 4.3 Cv
• Trim Material: Nickel Chrome Plated Brass
• Control Signal: Analog, Floating
• Voltage: 24 VAC
• Actuator: MS7505A2030
• Fail-Safe: Spring Return
• Nema Rating: NEMA 3R
• Close-Off Rating: 130 PSI
• Runtime: 45 seconds
• Operating Temperature: -5°F to 140°F (-20°C to 60°C)
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Media Temperature Range: -22°F to 250°F (-30°C to 121°C)
