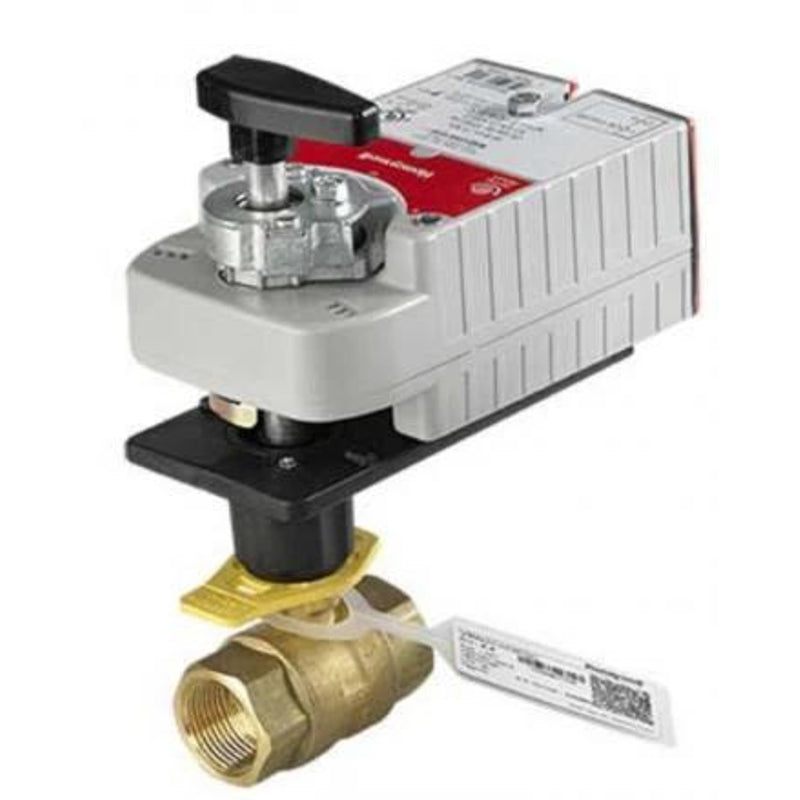

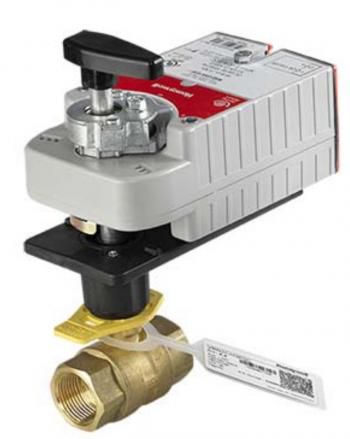

Honeywell VBN2AKSX6100 Ball Valve 1/2 in NPT 2-Way 11.7 CV

Product Description

The Honeywell VBN2AKSX6100 is a two-way ball valve designed for low-torque applications. This valve has a half-inch NPT connection and stainless steel trim, making it suitable for various heating and cooling systems. It has a Cv rating of 11.7, which is comparable to standard globe valves. The valve can handle hot or chilled water as well as up to fifty percent glycol solutions.

• Cv rating of 11.7
• 1/2 inch NPT connection
• Stainless steel trim

Product Highlights

This valve is ideal for heating and cooling systems where precision control of fluid flow is crucial.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: VBN2AKSX6100
• Model: P1911935
• Connection: NPT
• Cv: 11.7 CV
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 in
• Control Signal: Analog, Floating
• Flow Characteristic: Equal percentage
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: 130 psid (897 kPa)
• Materials Of Construction: Forged brass body, nickel-plated brass ball and stem, EPDM o-ring seals, 316 stainless steel ball and stem
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Operating Temperature: -5°F to 140°F (-20°C to 60°C)
• Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
• Warranty: 5 years
