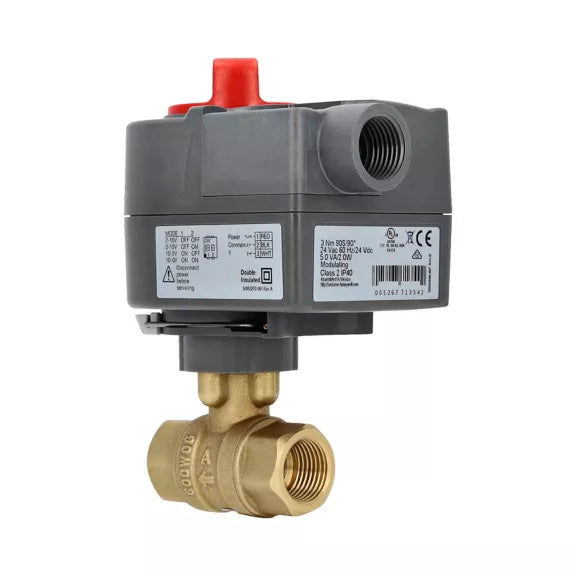

Honeywell VBN2AHSL3000 2-Way Ball Valve

Product Description

The Honeywell VBN2AHSL3000 is a 2-way ball valve designed for control applications. This valve provides reliable control for hot or chilled water and is compatible with up to 50% glycol solutions.

• Constructed with a brass trim material.
• Works with Honeywell or Kele 44 in-lb non-spring return or spring return actuators.
• Handles media temperatures from minus twenty-two to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve features characterized flow and equal percentage flow characteristics, providing precision control in various applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2AHSL3000

Technical Specifications

• Connection: NPT
• Cv: 4.3 CV
• Trim Material: Brass
• Pattern: 2-way
• Size: 3/4 in
• Control Signal: Analog
• Body Pattern: Two-way
• Flow Characteristic: Equal percentage
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Maximum Closeoff Pressure: 130 psid for 1/2 and 3/4 inch; 100 psid for 1 inch to 3 inches
• Media Compatibility: Hot or chilled water
• Media Temperature Range: -22 to 250 °F
• Warranty: 5 years
