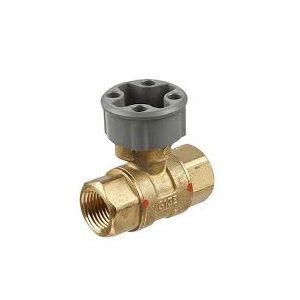

Honeywell VBN2AGSA0000 Ball Valve 1/2 in NPT 2-Way 2.6 Cv

Product Description

The Honeywell VBN2AGSA0000 is a low-torque, characterized flow ball valve designed for various applications. It features a one-half inch NPT connection and a two-way body pattern, making it suitable for both hot and chilled water systems, as well as up to fifty percent glycol solutions.

• 1/2 inch NPT connection
• 2-way body pattern
• Stainless steel trim

Product Highlights

The valve provides reliable flow control and is made with durable materials for longevity.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2AGSA0000

Technical Specifications

• Connection: NPT
• Cv: 2.6 Cv
• Trim Material: Stainless Steel
• Body Pattern: 2-way
• Flow Characteristic: Equal percentage
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Materials of Construction: 316 stainless steel ball and stem
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Media Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Warranty: 5 years
