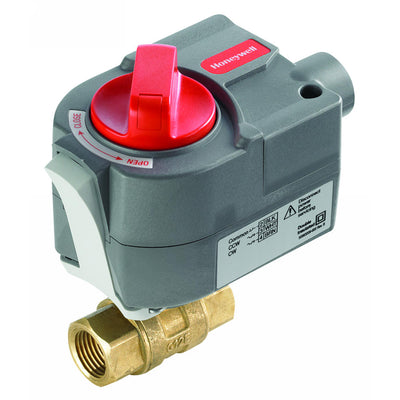

Honeywell VBN2AFPL3000 Ball Valve with Electric Actuator 1/2 inch NPT

Product Description

The Honeywell VBN2AFPL3000 is a two-way ball valve that includes an electric actuator. This valve connects with a one-half inch NPT fitting and features a brass trim for durability. With a Cv rating of two, the valve allows for precise control of fluid flow in various systems.

• Connection: one-half inch NPT
• Cv rating: two
• Trim Material: brass

Product Highlights

This valve is well-suited for modulating control and is designed with a fail-in-place mechanism for safety. It operates on twenty-four volts alternating current, ensuring compatibility with standard control systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBN2AFPL3000

Technical Specifications

• Connection: NPT
• Cv: two
• Trim Material: brass
• Pattern: two-way
• Size: one-half inch
• Control Signal: analog
• Body Pattern: two-way
• Flow Characteristic: equal percentage
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Materials Of Construction: forged brass body, nickel-plated brass ball and stem, EPDM o-ring stem seals
• Media Compatibility: hot or chilled water, up to fifty percent glycol
• Media Temperature Range: minus twenty-two to two hundred fifty degrees Fahrenheit
• Pressure Rating: three hundred sixty psig at two hundred fifty degrees Fahrenheit
• Operating Temperature: minus four to one hundred thirty-one degrees Fahrenheit
• Model: P1911931
• Brand: Honeywell
