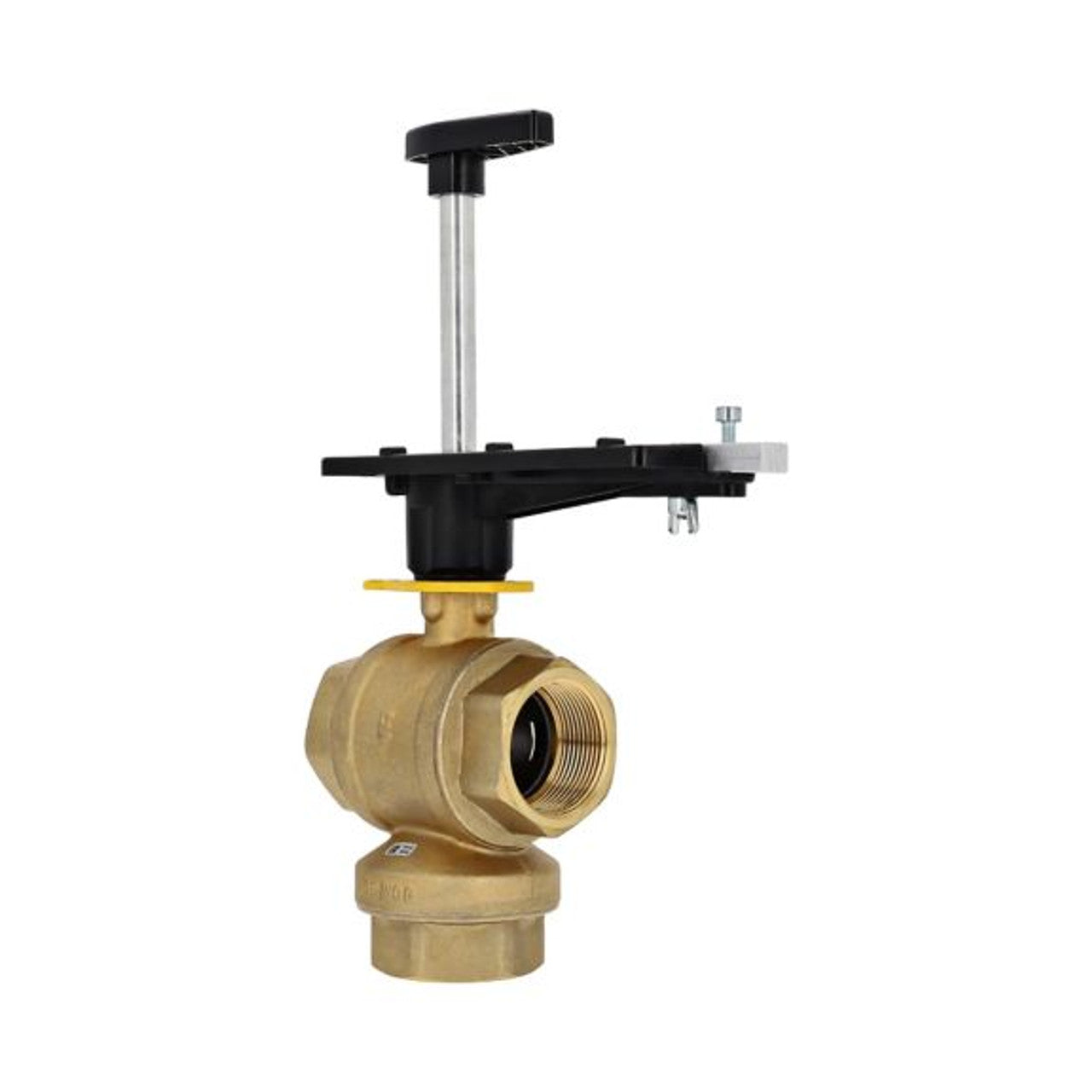

HONEYWELL VBN2AEPXF201 Control Ball Valve with Electric Actuator

Product Description

The HONEYWELL VBN2AEPXF201 is a control ball valve equipped with an electric actuator, suitable for HVAC applications. This valve effectively manages the flow of hot and chilled water, including glycol solutions up to a fifty percent concentration. It features a half-inch NPT connection and offers a flow coefficient (CV) rating of 1.3. This model has plated brass trim and a DCA profile, ensuring durability and efficiency.

• Utilizes a parabolic flow insert within the ball.
• Delivers CV ratings comparable to that of globe valves.
• Includes a removable manual override handle for ease of use.

Product Highlights

The valve includes modulating control for precise operation and a fail-safe closed feature for safety. It comes with a one-meter cable and two auxiliary switches, enhancing functional versatility.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: VBN2AEPXF201

Technical Specifications

• Valve Type: Control Ball Valve
• Connection Size: 1/2 In. NPT
• CV Rating: 1.3
• Trim Material: Plated Brass
• Actuator Type: Electric
• Control Type: Modulating (Fail-Safe Closed)
• Cable Length: 1 Meter
• Voltage: 24 Vac
• Auxiliary Switches: 2
