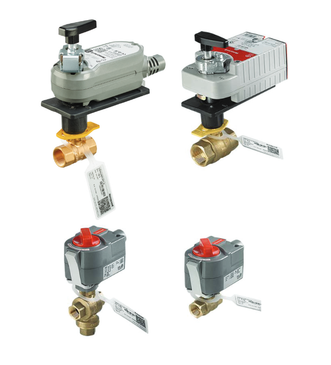

Honeywell VBN2ADSX8202 Control Ball Valve and Actuator Assembly

Product Description

The Honeywell VBN2ADSX8202 is a control ball valve and actuator assembly designed for use in HVAC systems. This valve can manage hot and chilled water with a compatibility for up to fifty percent glycol solutions. It features characterized flow and comes in a two-way configuration.

• Available in sizes from half an inch to three inches with internal NPT connections.
• Includes a removable manual operating handle.
• Designed for two-position control applications.

Product Highlights

The Honeywell VBN2ADSX8202 is ideal for controlling water flow in various HVAC applications. Its construction includes a forged brass body, nickel-plated brass ball, and stem with reinforced Teflon seals.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2ADSX8202

Technical Specifications

• Connection: NPT
• Valve Size: 2 inches
• Control Valve Type: Ball Valve
• Cv: 266
• Supply Voltage: 120 VAC
• Trim Material: Stainless Steel
• Flow Characteristic: Equal percentage
• Leakage Rating: ANSI Class IV (0.01% of Cv)
• Media Compatibility: Hot or chilled water, up to fifty percent glycol
• Media Temperature Range: -22°F to 250°F (-30°C to 121°C)
• Pressure Rating: 360 psig (2482 kPa) @ 250°F (121°C)
• Warranty: 5 years
• Maximum Closeoff Pressure: 100 psid (690 kPa)
