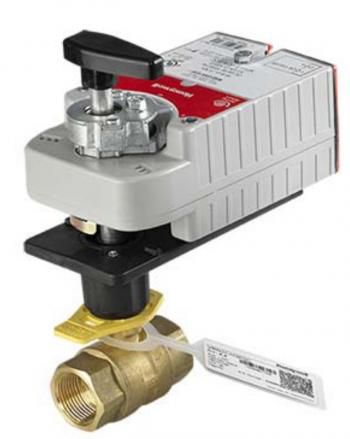

Honeywell VBN2ADPX6102 Control Ball Valve with Electric Actuator

Product Description

The Honeywell VBN2ADPX6102 is a control ball valve designed for HVAC systems. This valve controls hot and chilled water, including solutions with up to fifty percent glycol. It features a half inch NPT connection and has a Cv rating of 0.68. The actuator ensures modulating floating control with a fail-safe operation housed in a NEMA 3R enclosure.

• Valve size: half inch NPT
• 0.68 Cv rating for efficient control
• Modulating floating actuator with fail-safe operation

Product Highlights

This control ball valve is suitable for various HVAC applications, ensuring reliable performance in both heating and cooling systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBN2ADPX6102

Technical Specifications

• Control Valves Type: Ball Valve
• Connection: NPT
• Cv: 0.68 Cv
• Trim Material: Brass
• Pattern: 2-Way
• Valve Size: half inch
• Voltage: 24VAC
• Nema Rating: Nema 3R
• Fail-Safe: Spring Return
• Actuator: MS7505A2030
• Close-Off Rating: 130 PSI
• Control Signal: Analog, Floating, On/Off, 0-10VDC, 2-10VDC, 4-20mA
• Runtime: 45 Secs
• Feedback Signal: 2-10VDC
