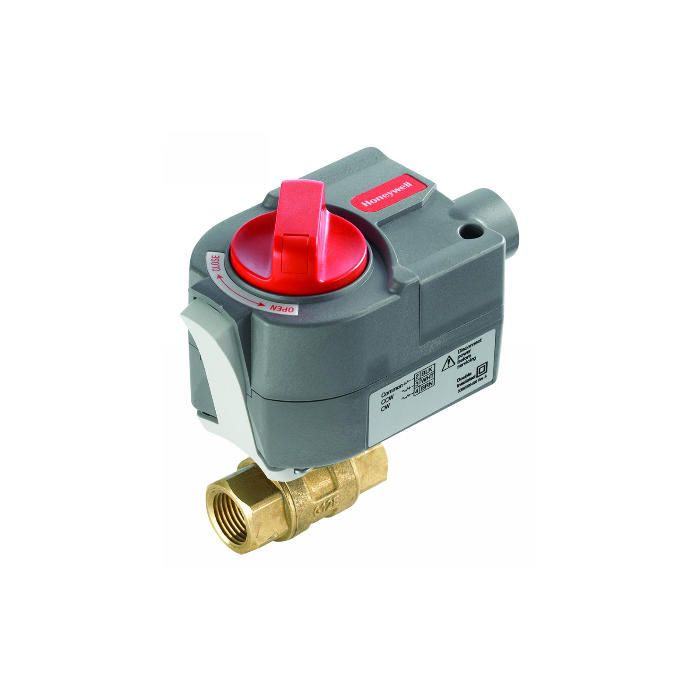

Honeywell VBN2ABSA3000 Ball Valve Assembly with Electric Actuator

Product Description

The Honeywell VBN2ABSA3000 is a ball valve assembly with a two-way design and electric actuator. This model offers precise flow control, making it suitable for various applications. It includes 1/2 inch NPT connections with durable stainless steel trim.

• Valve size: 1/2 inch NPT
• Automatic modulating actuator operating at 24 VAC
• Designed for hot and chilled water systems

Product Highlights

This assembly operates effectively in systems with up to 50% glycol. The actuator is direct-coupled, featuring a non-spring return fail-in-place function. Ideal for controlling flow in HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: VBN2ABSA3000

Technical Specifications

• Type: Assembly
• Connection: NPT
• Valve Size: 0.5 in
• Service: Hot and chilled water with glycol solutions up to 50%
• Operating Temperature: -22 F to 250 F
• Maximum Safe Operating Rating: 360 psi
• Power Consumption: 6 VA
• Voltage: 24 VAC
