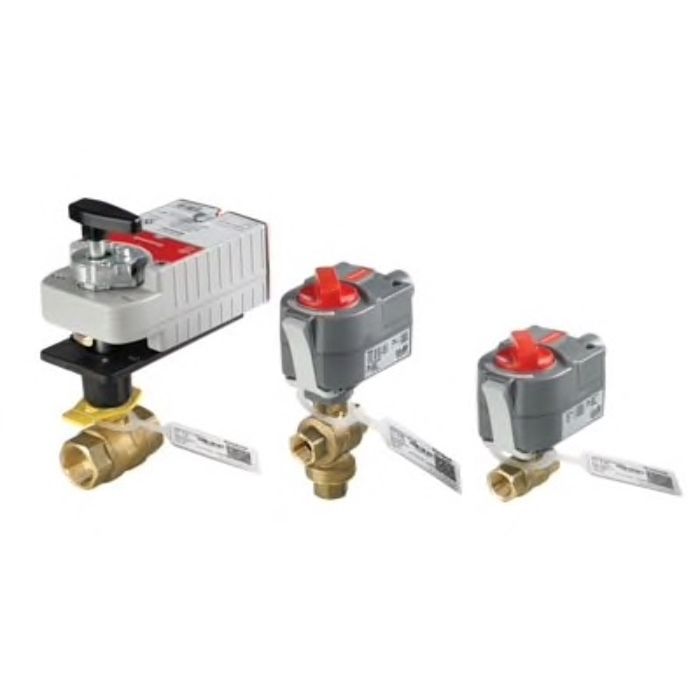

Honeywell VBN2A001.30PA Ball Valve 2 Way 1/2 in. NPT 1.3 Cv

Product Description

The Honeywell VBN2A001.30PA is a two-way ball valve designed for HVAC applications. With a half-inch NPT thread, this valve offers precise control for hot and chilled water with glycol solutions up to fifty percent.

• Suitable for various flow characteristics.
• Field configurable for fail-safe operation.
• Removable manual operating handle for ease of use.

Product Highlights

The valve installs in a globe valve T pattern, eliminating additional elbows or piping. It supports a wide range of Cv options for different flow rates, making it versatile for various applications.

Product Information

Standard Information

• Service: Hot and chilled water with glycol solutions up to fifty percent.
• Flow Characteristic: Equal percentage.

Technical Specifications

• Operating Temperature: -22 F to 250 F (-30 C to 121 C).
• Maximum Safe Operating Rating: 360 psi.
• Size: 1/2 inch NPT.
• Cv Rating: 1.3.
• Orientation: Can be mounted in four different orientations.
