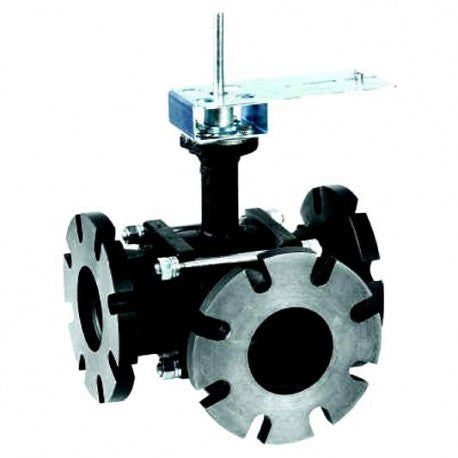

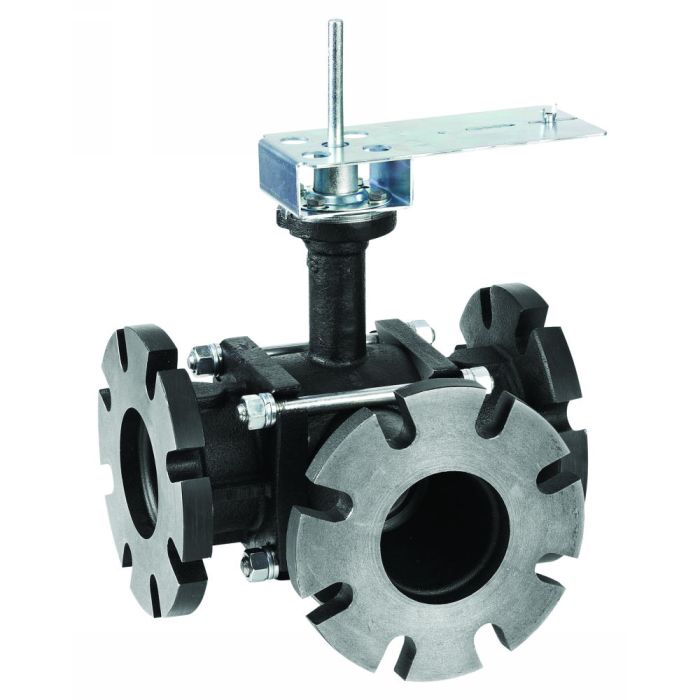

HONEYWELL VBF5013B1045 Three-Way Flanged Control Ball Valve

Product Description

The Honeywell VBF5013B1045 is a three-way flanged control ball valve designed for HVAC systems. It effectively manages mixing or diverting control of hot and chilled water, along with solutions containing up to fifty percent glycol. This valve is compatible with Honeywell electronic actuators, which ensures efficient operation in various systems. Field configuration allows for setting to normally open or normally closed fail-safe positions based on system requirements.

• Suitable for mixing or diverting control.
• Compatible with Honeywell electronic actuators.
• Meets ANSI Class IV leakage specifications.

Product Highlights

This control ball valve is essential for professionals installing or maintaining HVAC systems. It supports a variety of configurations and provides reliable performance across diverse applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF5013B1045

Technical Specifications

• Valve Size: from 2-1/2 inches to 6 inches with ANSI Class 125 flanged connections
• Pressure: 240 PSI
• Cv: 360
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% Reduced Flow Capacity
• Close Off Pressure: 70 PSI
• Service: Hot and chilled water with glycol solutions up to 50%
• Leakage Specification: ANSI Class IV leakage (0.01% of CV) A to AB; ANSI Class IV leakage B to AB; ANSI Class III leakage
• Valve Ball and Stem Material: 316 stainless steel
