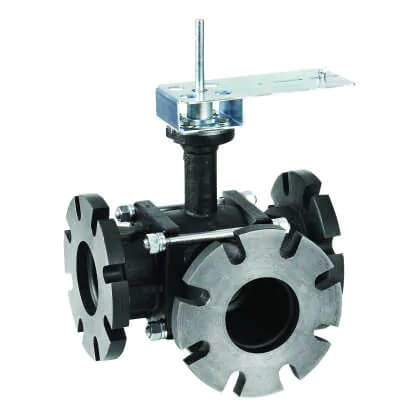

Honeywell VBF5013B1029 4 Inch 3-Way Flanged 160cv C.I. Ball Valve

Product Description

The Honeywell VBF5013B1029 is a robust 4-inch three-way flanged ball valve, designed for dependable performance in heating, ventilating, and air conditioning (HVAC) systems. This product facilitates precise control over hot and chilled water, with compatibility for glycol solutions up to fifty percent.

• Equipped with ANSI Class 125 flanged connections
• Capable of both mixing and diverting control
• Constructed from durable cast iron, ensuring longevity and resistance to corrosion

Product Highlights

This ball valve operates under a wide temperature range from 20 degrees Fahrenheit to 250 degrees Fahrenheit and can handle a maximum pressure of 240 psi. Its full-port design promotes unrestricted flow and low pressure drop, while the PTFE seats and brass ball enhance durability and seal integrity.

Product Information

Standard Information

• Valve Size: 4 inches
• Connection Type: Flanged x Flanged

Technical Specifications

• Flow Capacity (Cv): 160
• Material: Cast Iron
• Weight: 75 pounds
• Max Pressure (PSI): 240
• Temperature Range (F): 20 to 250
