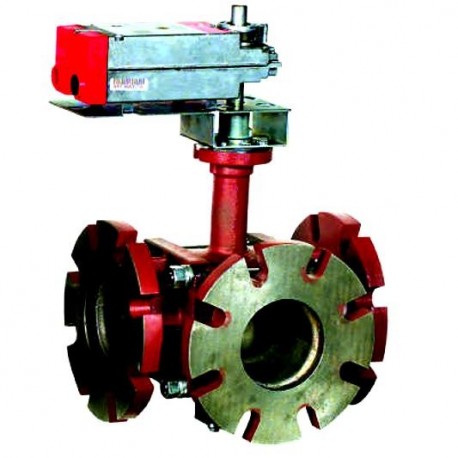

Honeywell VBF3L71S0C 3-Way Flanged Control Ball Valve

Product Description

The Honeywell VBF3L71S0C is a 3-way flanged control ball valve used for on/off control in HVAC systems. This valve is ideal for mixing or diverting hot and chilled water with up to fifty percent glycol solutions in closed-loop systems.

• Features ANSI Class 125 flanged connections.
• Compatible with 2-P on/off actuators.
• Operates effectively in temperatures from negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve includes a cast iron body, Teflon seat, and a 316 stainless steel stem. It is designed for both normally open and normally closed configurations, ensuring flexibility in installation.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3L71S0C

Technical Specifications

• Control Valves Type: Ball Valve
• Service: Hot and Chilled Water w/Glycol Solutions Up to 50%
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with 20% Reduced Flow Capacity
• Operating Temperature: Negative twenty-two degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Close Off Pressure: 70 psi
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
