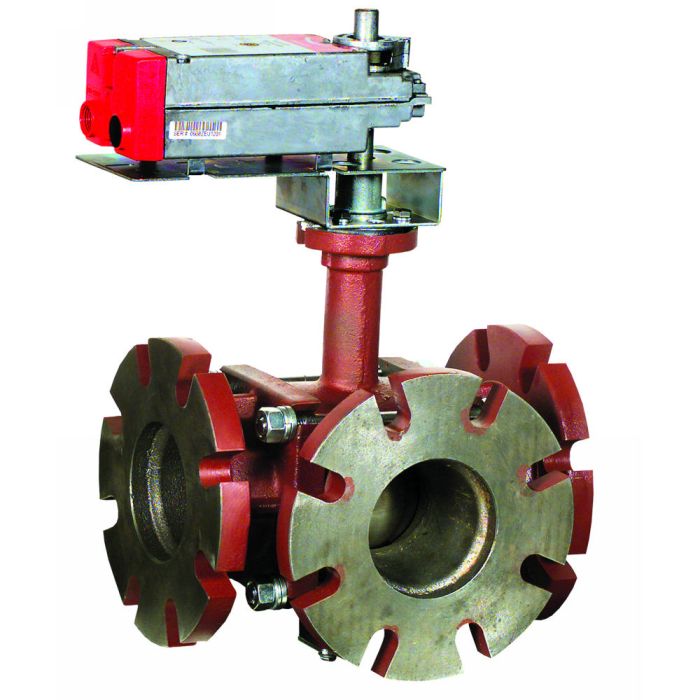

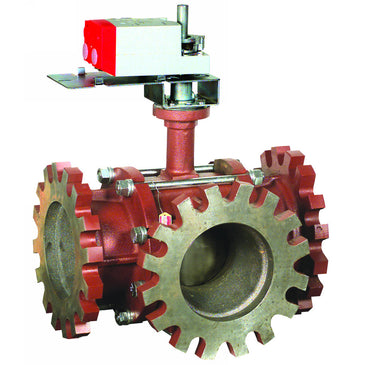

Honeywell VBF3L71S0B 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3L71S0B is a three-way ball valve designed to control hot and chilled water in HVAC systems. It can handle up to fifty percent glycol solutions and is suitable for closed-loop applications. The valve supports both two-position and modulating functions.

• Constructed with a durable cast iron body and Teflon seat.
• Features a flanged connection with ANSI Class 125 sizing.
• Compatible with various actuator types including 2-P on/off and 3-P floating actuators.

Product Highlights

This valve is serviceable with hot and chilled water, making it versatile for different system needs.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: VBF3L71S0B
• Model: P1911921
• Control Valve Type: Ball Valve
• Service: Hot and chilled water with glycol solutions up to 50%
• Flow Characteristic: Port A to AB: Equal Percentage / Port B to AB: Linear with twenty percent reduced flow capacity
• Operating Temperature: negative twenty-two Fahrenheit to two hundred fifty Fahrenheit
• Close Off Pressure: seventy psi
• Power Supply: twenty-four volts
• Frequency: fifty/sixty Hz
• Max Static Pressure: two hundred forty psi
• Position: Normally Closed
