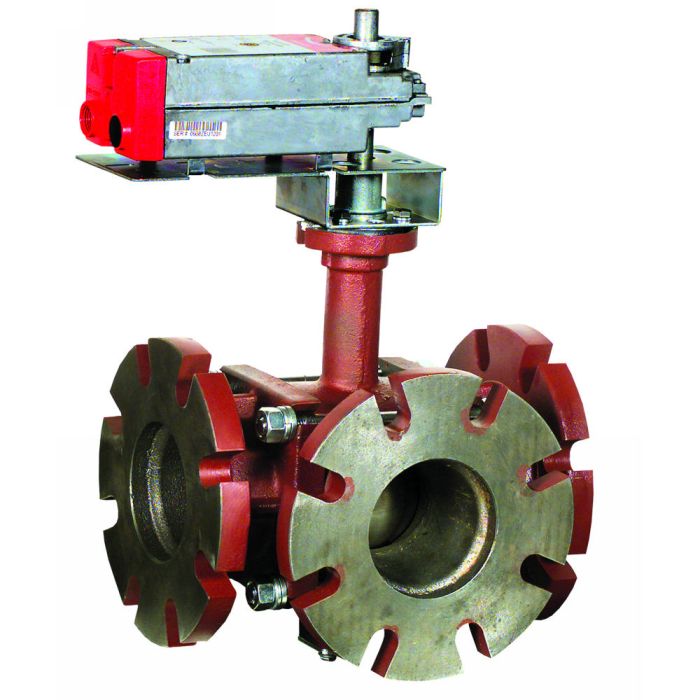

HONEYWELL VBF3L61S0X 3-Way Flanged Control Ball Valve

Product Description

The HONEYWELL VBF3L61S0X is a 3-way flanged ball valve designed for controlling hot and chilled water in HVAC systems. This valve handles up to 50% glycol solutions and is constructed with a flanged cast iron body and a 316 stainless steel stem. It accommodates sizes ranging from four to six inches with ANSI Class 125 flanged connections. The valve can be set up for normally open or normally closed positions, providing flexibility in system design.

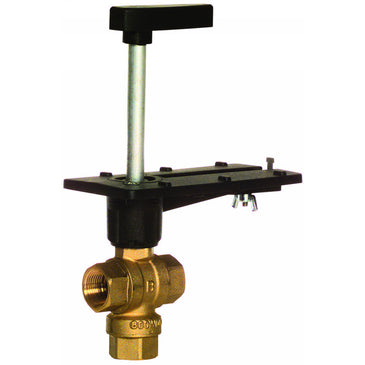

• Includes a removable manual operating handle.
• Compatible with 2-position on/off, 3-position floating, or 0-10Vdc modulating actuators.
• Provides options for equal percentage or linear flow characteristics.

Product Highlights

This valve is suitable for both mixing and diverting control in various HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3L61S0X

Technical Specifications

• Control Valve Type: Ball Valve
• Sizes: 4 to 6 inches
• Connections: ANSI Class 125 flanged
• Flow Characteristic: Port A To AB: Equal Percentage / Port B To AB: Linear with 20% reduced flow capacity
• Operating Temperature: -22 F to 250 F
• Close Off Pressure: 70 psi
• Max Static Pressure: 240 psi
• Power Supply: 24V
• Frequency: 50/60 Hz
• Position: Normally Closed
• Cv: 577
• Body Material: Flanged cast iron
• Stem Material: 316 stainless steel
• Temperature Range: -22 F to 250 F
