Product Description

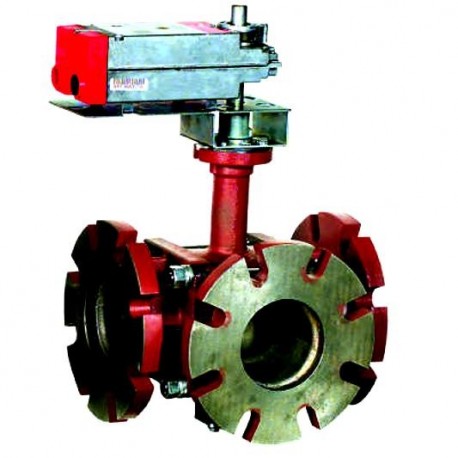

The Honeywell VBF3L61S0C is a 3-way flanged ball valve designed for controlling hot and chilled water with up to fifty percent glycol solutions in closed-loop HVAC systems. This valve supports two-position or modulating functions, enhancing operational flexibility.
- Suitable for hot and chilled water with glycol solutions.
- Features a removable manual operating handle for installation.
- Configurable fail-safe positions enhance reliability.
Product Highlights
This 3-way actuated control ball valve offers robust performance for HVAC systems.
Product Information
Standard Information
-
Brand: Honeywell
-
Manufacturer: Honeywell
Technical Specifications
-
MPN: VBF3L61S0C
-
Type: Ball Valve
-
Service: Hot and chilled water with glycol solutions up to 50%
-
Flow Characteristic: Equal percentage/linear flow
-
Operating Temperature: -22°F to 250°F
-
Close Off Pressure: 70 psi
-
Size: Four to six inches with ANSI Class 125 flanged connections
-
Actuation Control Schemes: Four options available
-
Fail-safe Position: Field configurable
-
Manual Operation: Removable handle
-
Seat Leakage: ANSI Class IV
-
Enclosure: Optional NEMA 3R rated
-
Actuator Mounting Positions: Four options
-
Cv Choices: Ranges from 91 to 650
-
Material: 316 stainless steel
-
Control: Non-isolating mixing or diverting control
