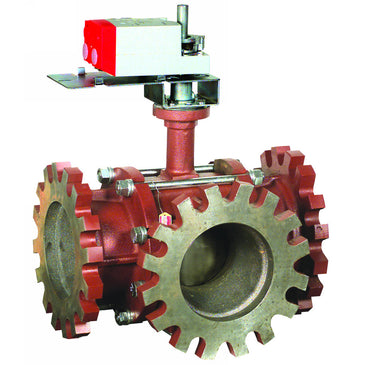

Honeywell VBF3L61S0B 6-Inch 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3L61S0B is a six-inch, three-way actuated control ball valve designed for HVAC applications. This valve is ideal for managing hot and chilled water with up to fifty percent glycol solutions in closed-loop systems.

• Features ANSI Class 125 flanged connections.
• Allows equal percentage or linear flow characteristics.
• Includes a removable manual operating handle.

Product Highlights

The valve operates effectively with two-position or modulating actuators, functioning as either a mixing or diverting valve.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: VBF3L61S0B

Technical Specifications

• Control Valves Type: Ball Valve
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
• Valve Sizes: 4 to 6 inches
• Connections: ANSI Class 125 flanged connections
• Body Material: Flanged, cast iron
• Seat Material: Teflon
• Stem Material: 316 stainless steel
• Cv Choices: 91 to 650
• Flow Pattern: Globe valve A-B-AB flow pattern with a Side B port
• Suitable Fluids: Hot and chilled water with glycol solution composition of up to 50%
• Flow Characteristic (Port A to AB): Consistently equal percentage
• Flow Characteristic (Port B to AB): Linear flow with a twenty percent reduced capacity
• Temperature Range: -22 F to 250 F (-30 C to 121 C)
• Close-off Pressure: Up to 70 psi
