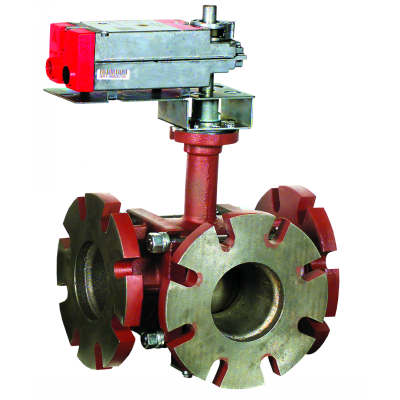

Honeywell VBF3L51S0X 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3L51S0X is a 3-way control ball valve that effectively manages hot and chilled water in closed-loop HVAC systems. It can handle solutions containing up to 50% glycol. This valve operates with both two-position and modulating functions, making it versatile for various applications. Designed for either mixing or diverting tasks, it includes flanged connections and features a durable stainless steel ball and stem.

• Valve size: six inches.
• CV rating: 441.
• Compatible with 2-P on/off actuators, 3-P floating, or 0-10Vdc modulating actuators.

Product Highlights

This valve is ideal for HVAC applications involving temperature control and fluid management.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• Part Number: VBF3L51S0X
• Control Valves Type: Ball Valve
• Valve Size: six inches
• Valve Piping: 3-Way
• Connection: Flanged
• CV: 441
• Trim: Stainless Steel
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
• Nema Rating: Nema 2
