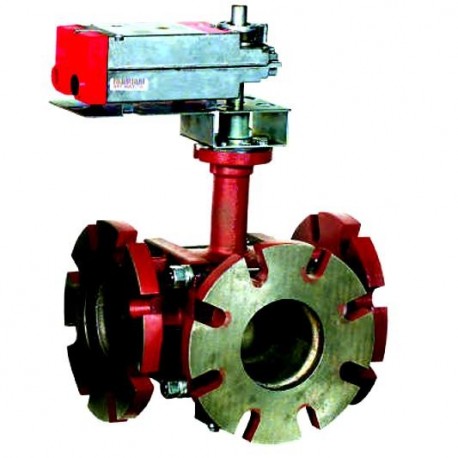

HONEYWELL VBF3L51S0C Three-Way Ball Valve Assembly

Product Description

The Honeywell VBF3L51S0C is a three-way ball valve assembly used for managing hot and chilled water in HVAC systems. It supports glycol solutions up to fifty percent in closed loops. The valve is suitable for sizes ranging from four to six inches and includes ANSI Class 125 flanged connections. A removable manual handle allows for operation during power failures. The valve ball and stem, made from 316 stainless steel, assist in providing non-isolating mixing or diverting control.

• Controls water with glycol solutions in HVAC systems.
• Offers equal percentage or linear flow characteristics.
• Features field configurable fail-safe position.

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: VBF3L51S0C
• Valve Type: Ball Valve

Technical Specifications

• Nominal Size: 6 inch
• Maximum Static Pressure: 240 PSI
• Actuation Control Schemes: Four options available
• Fail-Safe Position: Configurable for open or closed
• Manual Operation: Removable handle included
• Seat Leakage: ANSI Class IV A-port
• Enclosure: Optional NEMA 3R
• Actuator Mounting Positions: Four options
• Cv Choices: Ranges from 91 to 650
• Valve Ball and Stem: 316 stainless steel
• Control: Non-isolating mixing or diverting
• Power Supply: 24V
• Frequency: 50/60 Hz
• Position: Normally Closed
