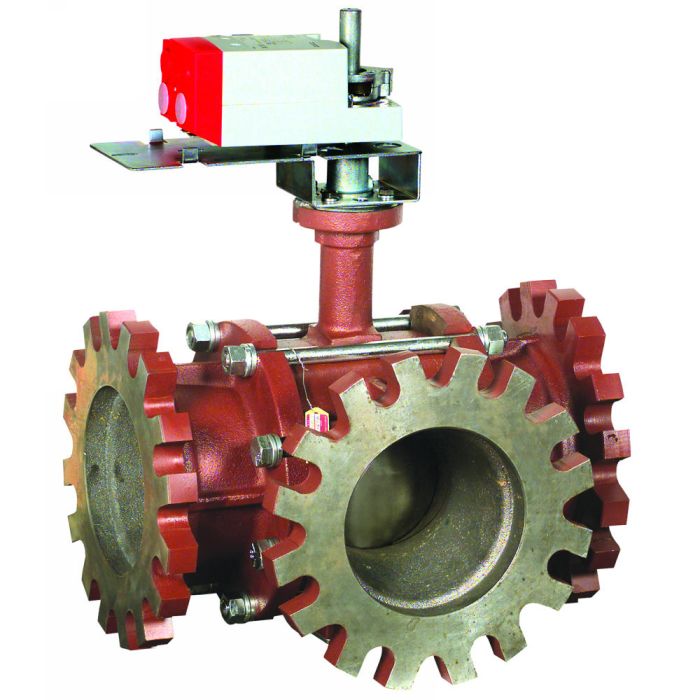

Honeywell VBF3L51S0B 3-Way Actuated Control Ball Valve

Product Description

The Honeywell VBF3L51S0B is a 3-way ball valve that controls hot and chilled water with up to fifty percent glycol solutions. It is designed for closed-loop HVAC systems and comes with a six-inch size and a flow capacity of four hundred forty-one Cv. The valve features a cast iron body, a Teflon seat, and a stainless steel stem.

• Handles hot and chilled water with glycol solutions
• Configurable for normally open or closed fail-safe positions
• Compatible with 2-P on/off, 3-P floating, or 0-10 Vdc actuators

Product Highlights

Ideal for use in HVAC applications, this valve functions as both a mixing and diverting valve.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: VBF3L51S0B

Technical Specifications

• Control Valves Type: Ball Valve
• Service: Hot and Chilled Water w/Glycol Solutions Up to 50%
• Flow Characteristic: Equal Percentage/Linear with 20% Reduced Flow Capacity
• Operating Temperature: -22 F to 250 F (-30 C to 121 C)
• Close Off Pressure: 70 psi
• Power Supply: 24V
• Frequency: 50/60 Hz
• Max Static Pressure: 240 PSI
• Position: Normally Closed
